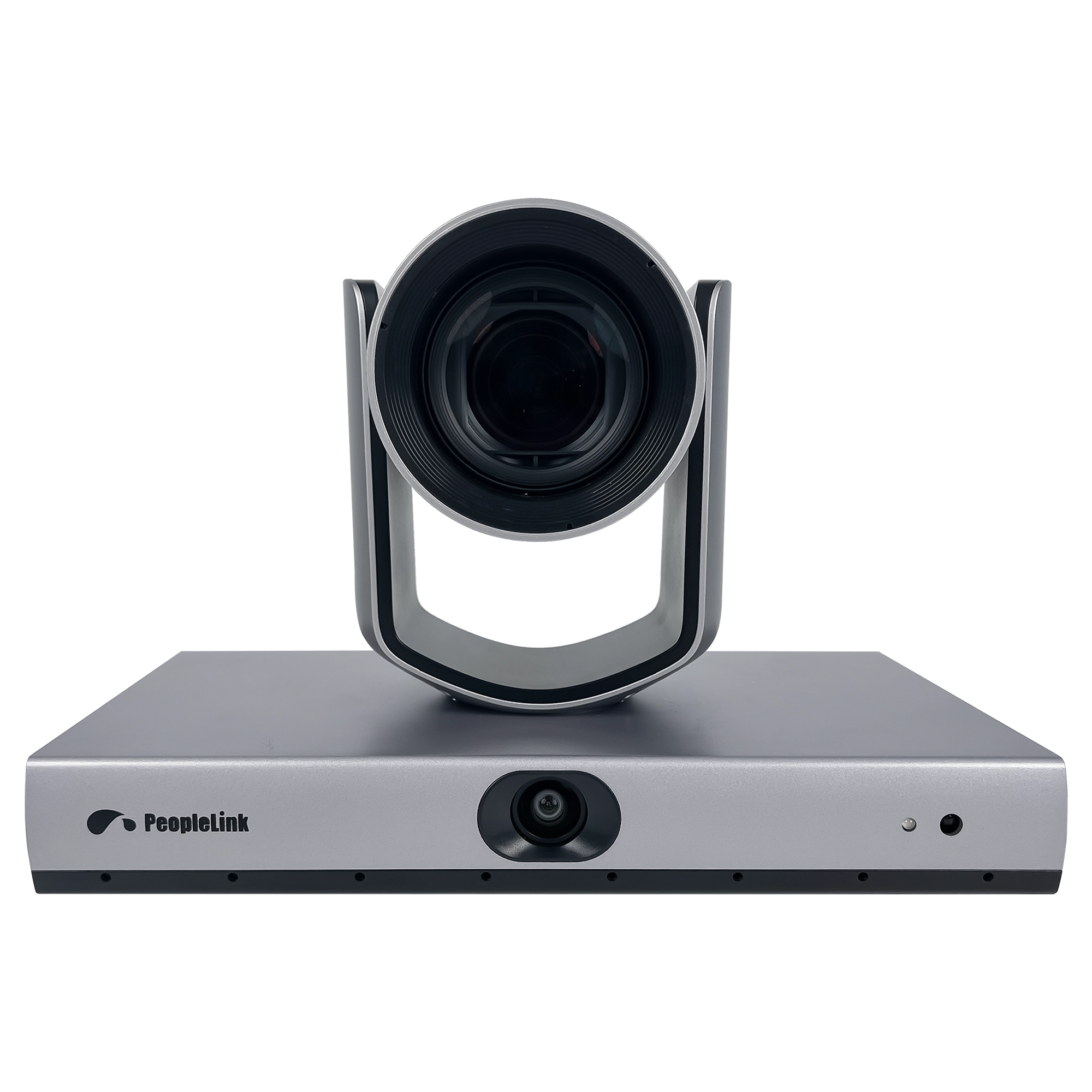

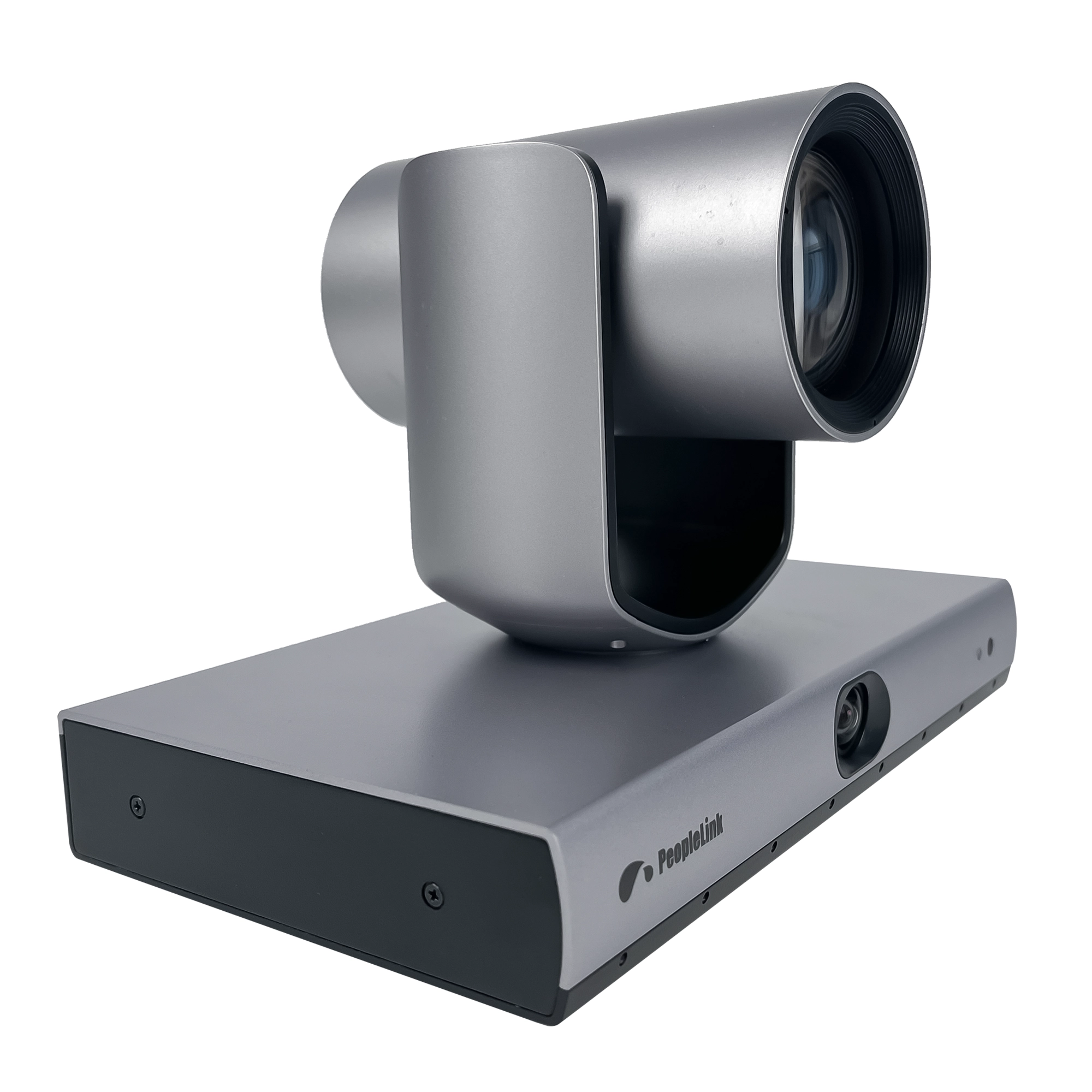

PeopleLink Speaker Track Camera helps to improve the meeting with audio positioning and intelligent video analysis. The camera makes it possible to avoid manual operation due to automatic switching between close-up and full images based on speaker identification so that all participants can focus only on the discussion contents. This system maximizes the meeting experience by enabling dynamic framing of active speakers, which helps create a more interactive and productive team working environment.
The Speaker Track camera delivers crystal clear video in 1080P@60fps resolution, providing high-quality videos according to the various connectivity needs. It offers high-definition images that demonstrate clear vision.

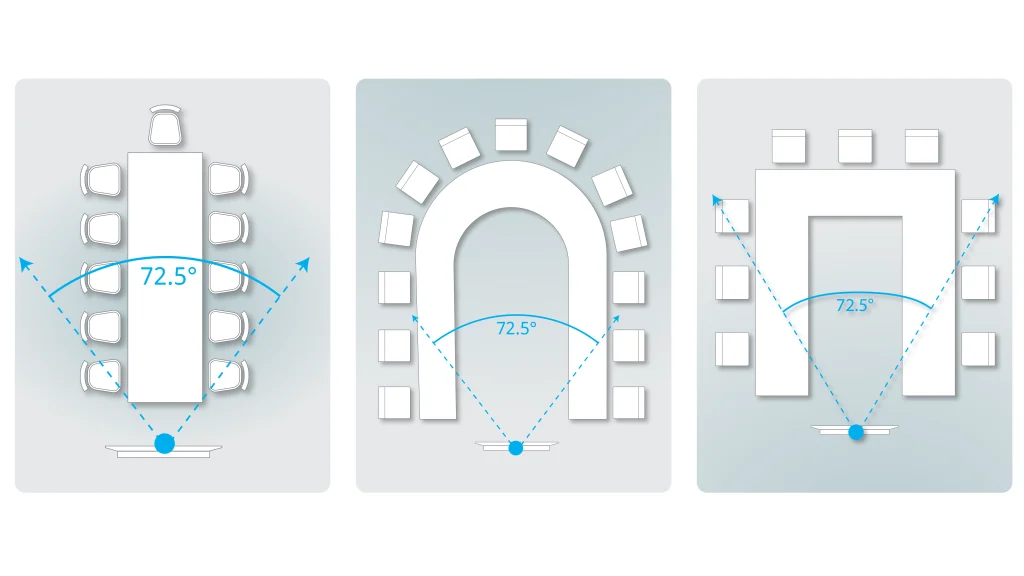

This camera has 12x optical zoom and up to 72.5 Field of View, making it versatile for framing different meeting scenarios. The Speaker Track Camera is perfect for meeting rooms, huddle rooms, or even bigger spaces to conduct regular catch-up calls.

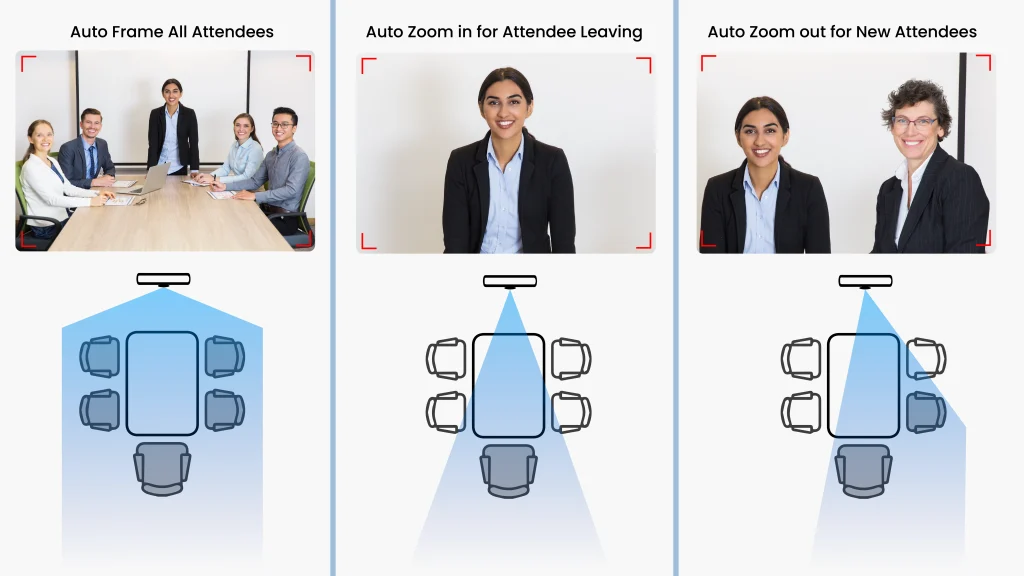

The Speaker Track automatically changes close-up pictures for speakers and wide-lens photos for all attendees, saving attendance from manual adjustment and enabling concentrated discussions. It uses audio positioning, body detection, and recognition technologies to frame speakers so they induce a better conference precisely. The AI-based PTZ camera covers every angle in HD.
Equipped with advanced Face Detection and Lock Tracking Algorithm technology, the Speaker Track camera effortlessly identifies and locks onto the lecturer, ensuring seamless tracking even when the lecturer is wearing a mask. The camera's intelligent adjustment function automatically adapts the tilt angle to match the lecturer's height.

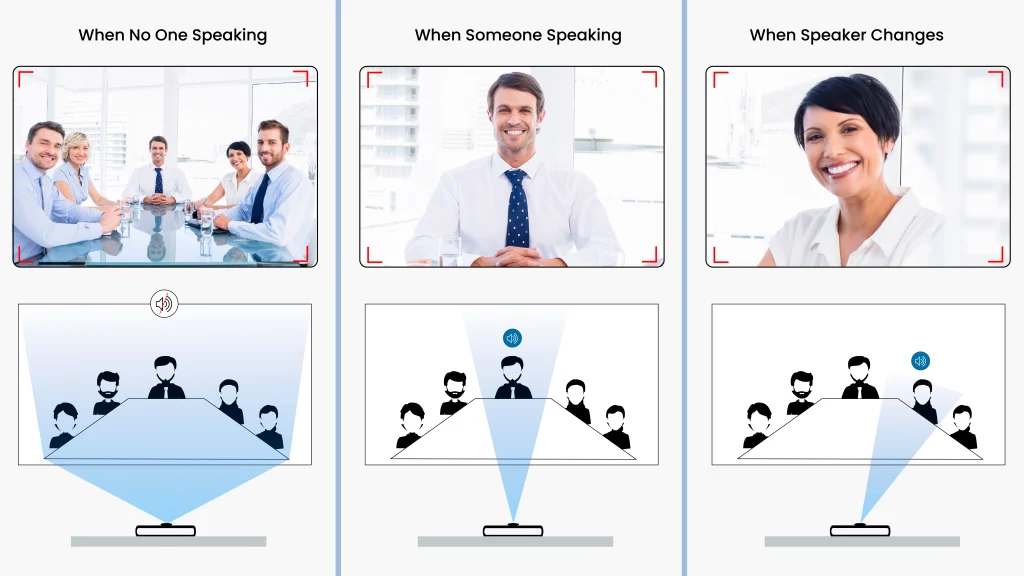

Featuring a combination of voice source localization and lock tracking technology, this camera skillfully frames all attendees when there is no active speaker. Upon detecting a speaker, the camera dynamically locks onto and tracks them, providing a close-up shot for optimal visibility. The transition between speakers is executed seamlessly as the camera effortlessly locks onto and tracks the new speaker.
The camera has the technology to focus only on the speaker. Canceling the voice interruption helps to concentrate on the speaker and the people attending any meeting virtually. Apart from that, it doesn't even pick up regular noises like keyboard typing noises or more.
1080p@60fps HD video output, equipped with intelligent exposure function, optimizes the image to restore the true color, and the details are clearly visible to improve the efficiency of the meeting.
It can be used in several locations and spaces. The Speaker Track camera is primarily a perfect solution for Conference Rooms, Education, Training and Events. It can be beneficial in both virtual and face-to-face meetings.

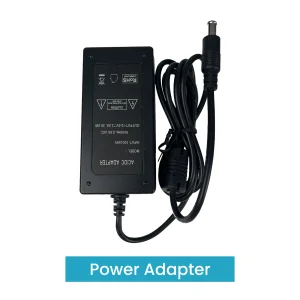

Power Adapter

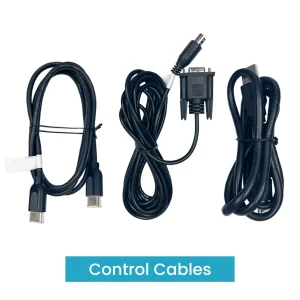

Control Cables

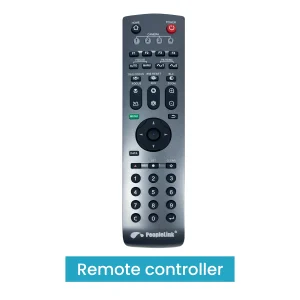

Remote Controller

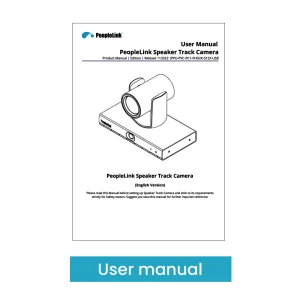

User Manual

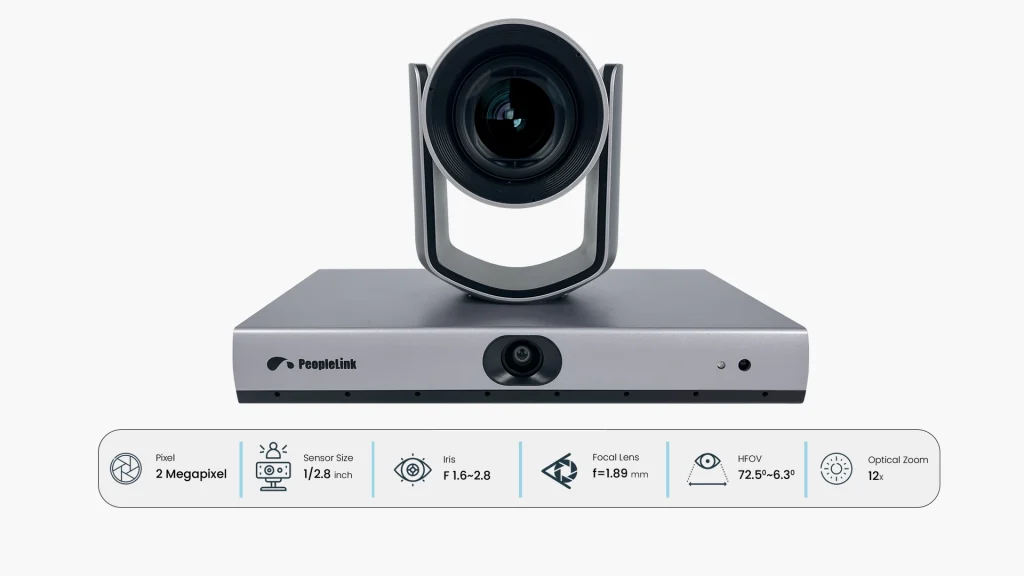

| Image Sensor | : PTZ Camera: 1/2.8" 2.13MP CMOS |
| Image Resolution | : FHD 1080p@60fps |
| Optical Zoom | : 12x Optical Zoom |
| Digital Zoom | : 12x Digital Zoom |
| Field of View | : 72.5° Field Of View |
| Focal Length | : 3.9mm ~ 46.8mm |
| Focus | : Auto, Manual, PTZ Push, One Push |
| Digital Noise Reduction | : 2D﹠3D digital noise reduction |
| White Balance | : Auto, Indoor, Outdoor, One Push, Manual, Auto Tracking |
| PAN | : 90 ~ -90° |
| Tilt | : 90 ~ -30° |

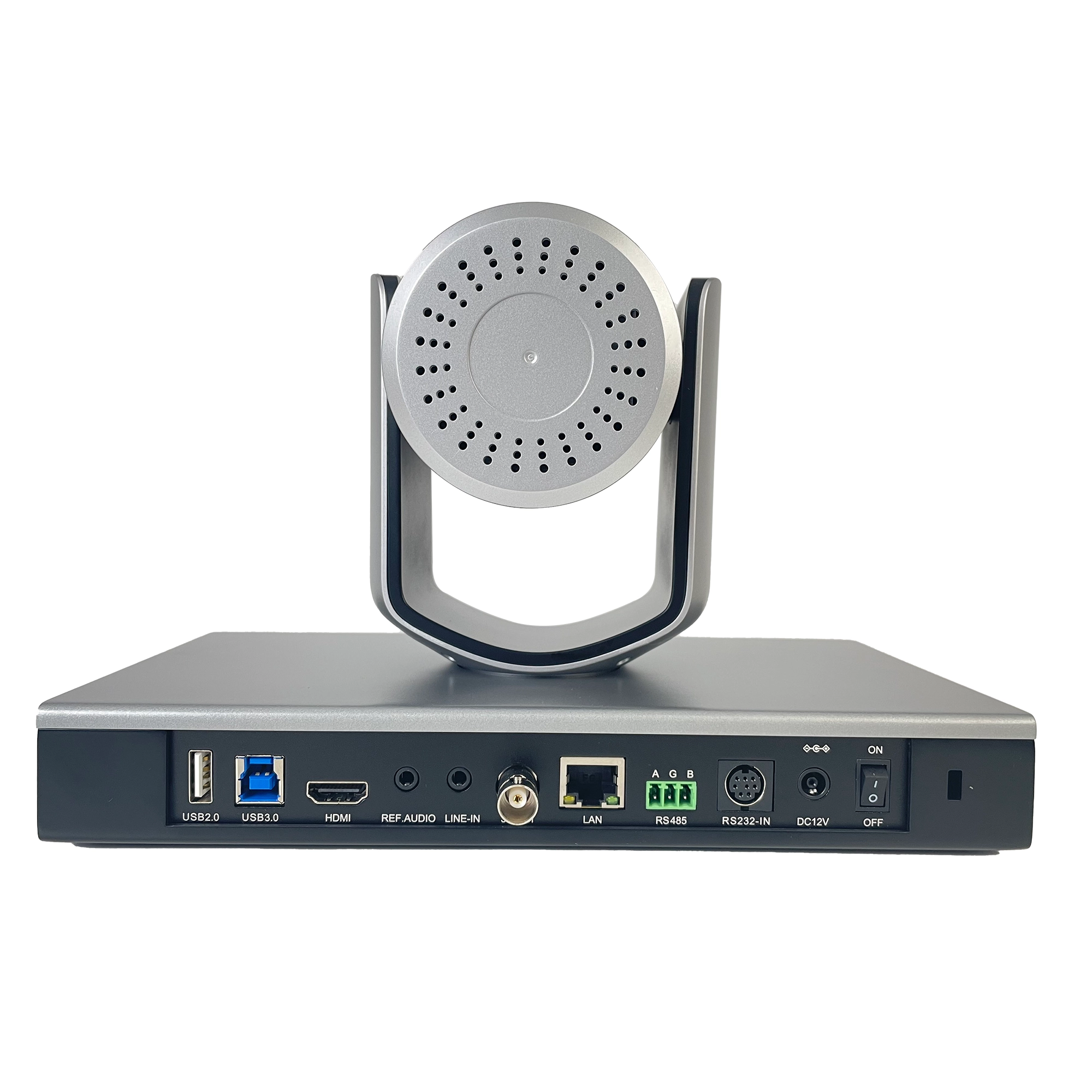

| Video Outputs | : HDMI / SDI / Ethernet or USB2.0, Line In/out |
| Control Interface | : RS-232 / Ethernet |
| Control Protocol | : VISCA |
| Video Compression | : H.264, H.265, MJPEG |
| Presets | : 255 Presets |
| Dual Stream | : Support 1 Tracking, 1 Full-View |
| Parameter | PeopleLink Teacher/Student 20X Camera | Speaker Track Camera | Speaker Track Pro Camera |
|---|---|---|---|
| Image | /images/wp-content/uploads/2019/09/Teacher_Student-Track.webp | /images/wp-content/uploads/2019/09/Speaker-Track-camera-standard_Front-view150-150.webp | /images/wp-content/uploads/2019/09/Speaker-Track-pro-camera150-150.webp |
| Image Sensor | 1/2.8" CMOS, 2.14MP | PTZ Camera: 1/2.8" 2.13MP CMOS | 1/2.8" 2.14MP CMOS |
| Image Resolution | FHD 1080p@60fps | FHD 1080p@60fps | FHD 1080p@60fps |
| Optical Zoom | 20x Optical Zoom | 12x Optical Zoom | 12x Optical Zoom ( Dual lens ) |
| Digital Zoom | 12x Digital Zoom | 12x Digital Zoom | 12x Digital Zoom ( Dual lens ) |
| Field of View | 59.5° Field Of View | 72.5° Field Of View | 72.5° Field Of View ( Dual lens ) |
| Focal Length | f=4.7mm～94mm | 3.9mm ~ 46.8mm | 4.9mm ~ 94mm |
| Focus | Auto, Manual, PTZ Trigger, | Auto, Manual, PTZ Push, One Push | Auto, Manual, PTZ Push, One Push |
| Illumination | 0.5 lux (Color), 0.1lux (B/W) | 0.5Lux (Color)，0.1Lux (B/W) (F1.6-F2.8, AGC ON) | 0.5Lux (Color)，0.1Lux (B/W) |
| Digital Noise Reduction | 2D﹠3D digital noise reduction | 2D﹠3D digital noise reduction | 2D ﹠3D digital noise reduction |
| White Balance | Auto, Indoor, Outdoor, One Push, Manual, Auto Tracking | Auto, Indoor, Outdoor, One Push, Manual, Auto Tracking | Auto, Indoor, Outdoor, One Push, Manual, Auto Tracking |
| PAN | 170°～+170° | 90 ~ -90° | 90 ~ -90° |
| Tilt | 30°～+90° | 90 ~ -30° | 90 ~ -30° |
| Video Outputs | USB3.0, HD-SDI , IP and DVI | HDMI / SDI / Ethernet or USB2.0, Line In/out | HDMI / SDI / Ethernet or USB2.0 |
| Control Interface | RS-485, RS-232, USB3.0 | RS-232 / Ethernet | RS-232 / Ethernet |
| Control Protocol | PELCO-D, VISCA, UVC | VISCA | VISCA, PELCO-P, PELCO-D |
| Video Compression | H.265/ H.264/MJPEG | H.264, H.265, MJPEG | H.264, H.265, MJPEG |
| Storage | Local Storage : TF Card | 255 Presets | 255 Presets |
| Dual Stream | Dual Stream Support | Support 1 Tracking, 1 Full-View | Dual Stream Support |
| Certifications & Approvals | CE, ROHS and FCC | CE, ROHS and FCC | CE, ROHS and FCC |
Disclaimer: Features and specifications are subject to change without prior notification, Images shown here are for representational purpose only, actual may vary.
