Stream, Chat, and record with the Impact Endpoint from PeopleLink. This Impact Endpoint supports up to 1080p@60fps video and features auto-focus and automatic backlight correction for precise details, whether in dimly or brightly lit environments. It features a 12x optical zoom, 16x digital zoom, a wide 72.5 ° horizontal field of view, and 2D and 3D digital noise reduction for a crisp, clear image. This Impact Endpoint is compatible with various collaboration platforms and suitable for various meeting scenarios.
Enjoy vivid clarity with a true high-definition experience at 1080p resolution and a smooth 60 frames per second, ensuring crystal-clear video quality for your communication needs.
Capture details precisely using the Full HD PTZ camera's 12x optical zoom and 16x digital zoom enhanced by cutting-edge image sharpening technology for exceptional clarity even at a distance.
Embrace real-time multimedia communication over IP with support for H.323 and SIP protocols, providing flexibility and interoperability for diverse communication environments. Utilize industry-standard protocols like H.239 and BFCP for efficient and seamless content sharing, ensuring compatibility and smooth multimedia communication over various networks. PeopleLink ensures a seamless integration with the other hardware-based endpoints to conduct conferencing & presentation sharing to ensure effective visual collaboration for your organization with necessary licenses.
Advanced Microphone Technology benefits from clear and crisp audio with a built-in omnidirectional microphone featuring echo cancellation and noise suppression, ensuring optimal sound quality during meetings and conferences.
Experience Full HD endpoint capabilities at 1080p@60fps and easily transition to multiparty communication (P2P) (1+3) with the option to upgrade using a simple soft key, providing versatility for different meeting scenarios.
This unique feature of Impact Pro Endpoint facilitates one-touch USB recording, transforming a USB drive into an elaborate video archive. The entire conference and shared content are stored directly on a USB device to avoid loss of post-meeting information.
PeopleLink Video Conferencing Endpoint is equipped with input HDMI ports for content sharing to allow users to connect multiple input devices, including a video conferencing camera, laptop, and PC. With the help of HDMI output ports, users can enjoy video output on multiple displays simultaneously.
Experience natural, real-time collaborations and communications with Content Sharing, allowing presenters to share presentations, files, animations, images, and more to create a smooth and interactive video conferencing environment.
Data security and privacy cannot be overlooked when holding an important video conference. Therefore, PeopleLink Impact Video Conferencing Endpoints are equipped with industry-leading AES encryption to safeguard your virtual meetings.

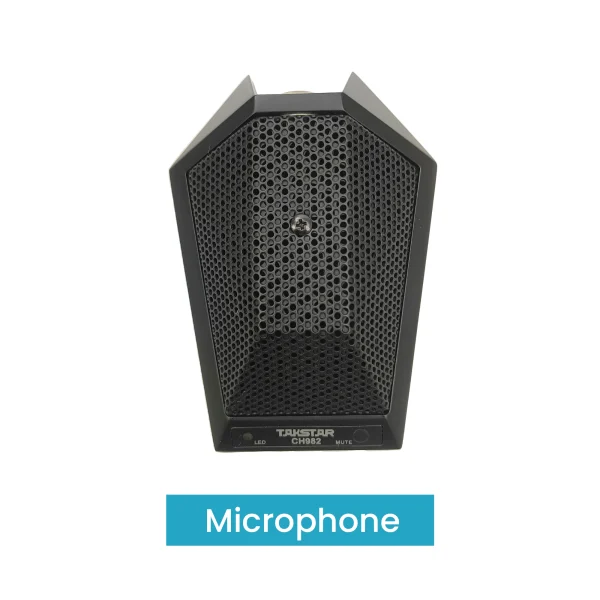

Microphone

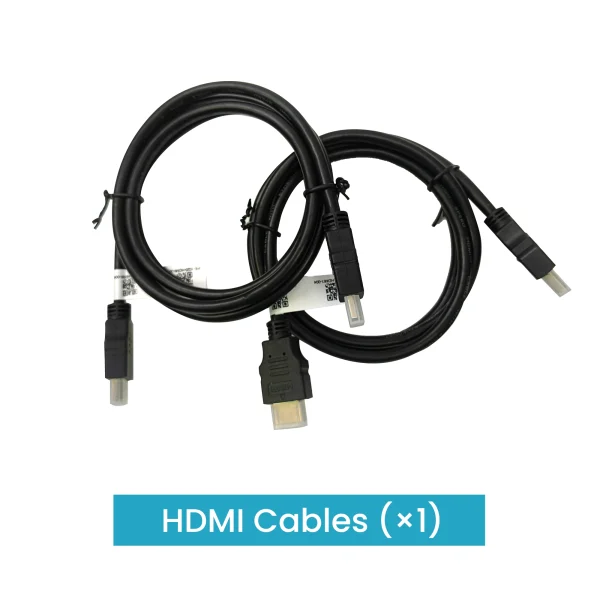

HDMI Cables

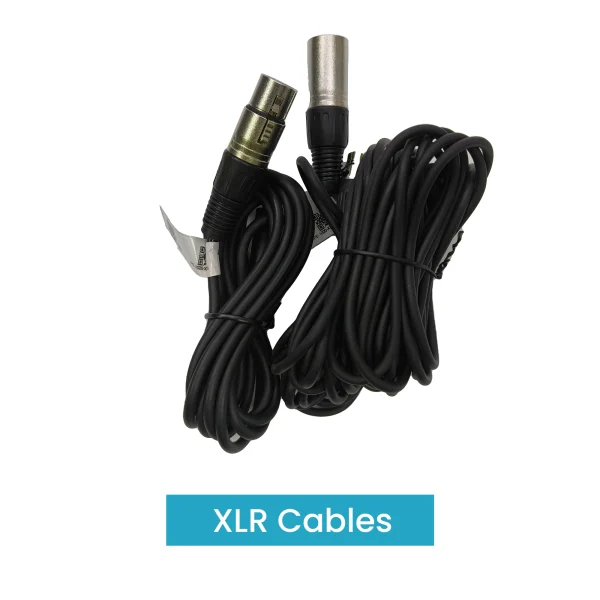

XLR Cables
Power Cable & Adapter

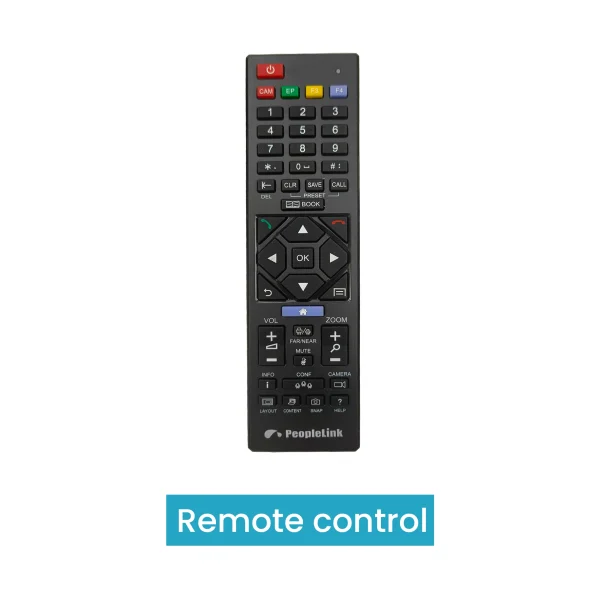

Remote Control

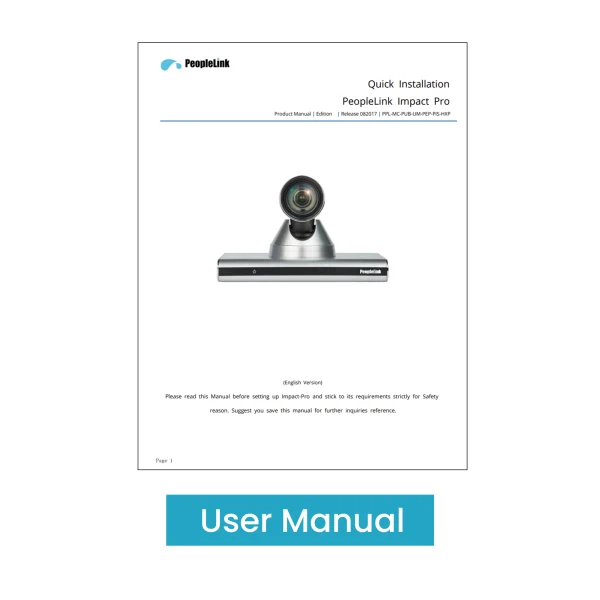

User Manual
| Built-in Camera | : | Yes |
| Image Sensor | : | 1/2.7-inch CMOS 2.07M |
| Image Resolution | : | 1080p FHD |
| Frames per second | : | 60fps |
| Optical Zoom | : | 12x optical zoom |
| Digital Zoom | : | 16x digital zoom |
| Field of View | : | 72.5 degrees |
| Interoperability | : | H.323/SIP |
| Dual Stream | : | H.239/BFCP |
| Dual Display Support | : | Yes |
| Bandwidth | : | 64kbps ~ 8Mbps |
| Built-in MCU | : | P2P, 1+3 |
| Built-in VPN | : | Yes |
| Microphone | : | 1 Omni-Directional Mic |
| Mic Pickup Range | : | 3 meter |
| 3A Algorithm | : | Built in AEC, AGC & ANS |
| Built-in Speaker | : | No |
| Interface | : | USB, HDMI, DVI, D-MIC, RJ45, Mic, Line In/Out |
| Video Codecs | : | H.263, H.264, H.264HP |
| Inbuilt Recording | : | Optional |
| Presets | : | 8 |
| Camera Control | : | Yes |
| Remote Control | : | Remote Control |
| Application | : | Meeting Rooms, Conference rooms |
| Parameter | Impact Pro 12X Endpoint | Impact Pro 20X Endpoint | 4K Impact Bar |
|---|---|---|---|
| Built-in Camera | Yes | Yes | Yes |
| Image Sensor | 1/2.7-inch CMOS 2.07M | 1/2.7-inch CMOS 2.07M | 1/2.5" CMOS, 8.51 MP |
| Image Resolution | 1080p FHD | 1080p FHD | 4K UHD |
| Frames per second | 60fps | 30fps | 4K @ 30fps, 1080p@ 60fps |
| Optical Zoom | 12x optical zoom | 20x optical zoom | 20x optical zoom |
| Digital Zoom | 16x digital zoom | N/A | 5x digital zoom |
| Field of View | 72.5 degrees | 60.7 degrees | DFoV 121 degrees |
| Interoperability | H.323/SIP | H.323/SIP | H.323/SIP |
| Dual Stream | H.239/BFCP | H.239/BFCP | H.239/BFCP |
| Dual Display Support | Yes | Yes | Yes |
| Bandwidth | 64kbps ~ 8Mbps | 64kbps ~ 8Mbps | 64kbps ~ 8Mbps |
| Built-in MCU | P2P, 1+3 | P2P, 1+3 | P2P, 1+3 |
| Built-in VPN | Yes | Yes | Yes |
| Microphone | 1 Omni-Directional Mic | 1 Omni-Directional Mic | 1 Built-in array microphone |
| Mic Pickup Range | 3 meter | 3 meter | 6 meter |
| 3A Algorithm | Built in AEC, AGC & ANS | Built in AEC, AGC & ANS | Built in AEC, AGC & ANS |
| Built-in Speaker | No | No | Built-in speaker |
| Interface | USB, HDMI, DVI, D-MIC, RJ45, Mic, Line In/Out | USB, HDMI, RJ45, Mic, Line In/Out | USB 2.0, USB 3.0, USB 3.0 Type-C, HDMI, RJ45, Line In/Out |
| Video Codecs | H.263, H.264, H.264HP | H.263, H.264, H.264HP, SVC | H.264, H.264 HP, H.264 SVC |
| Inbuilt Recording | Optional | USB Recording | USB Recording |
| Presets | 8 | 10 | N/A |
| Camera Control | Yes | Yes | Yes |
| Remote Control | Remote Control | Remote Control | Remote Control |
| Application | Meeting Rooms, Conference rooms | Meeting Rooms, Conference rooms | Meeting Rooms, Conference rooms |
Disclaimer: Features and specifications are subject to change without prior notification. Images shown here are for representational purpose only, actual may vary.
