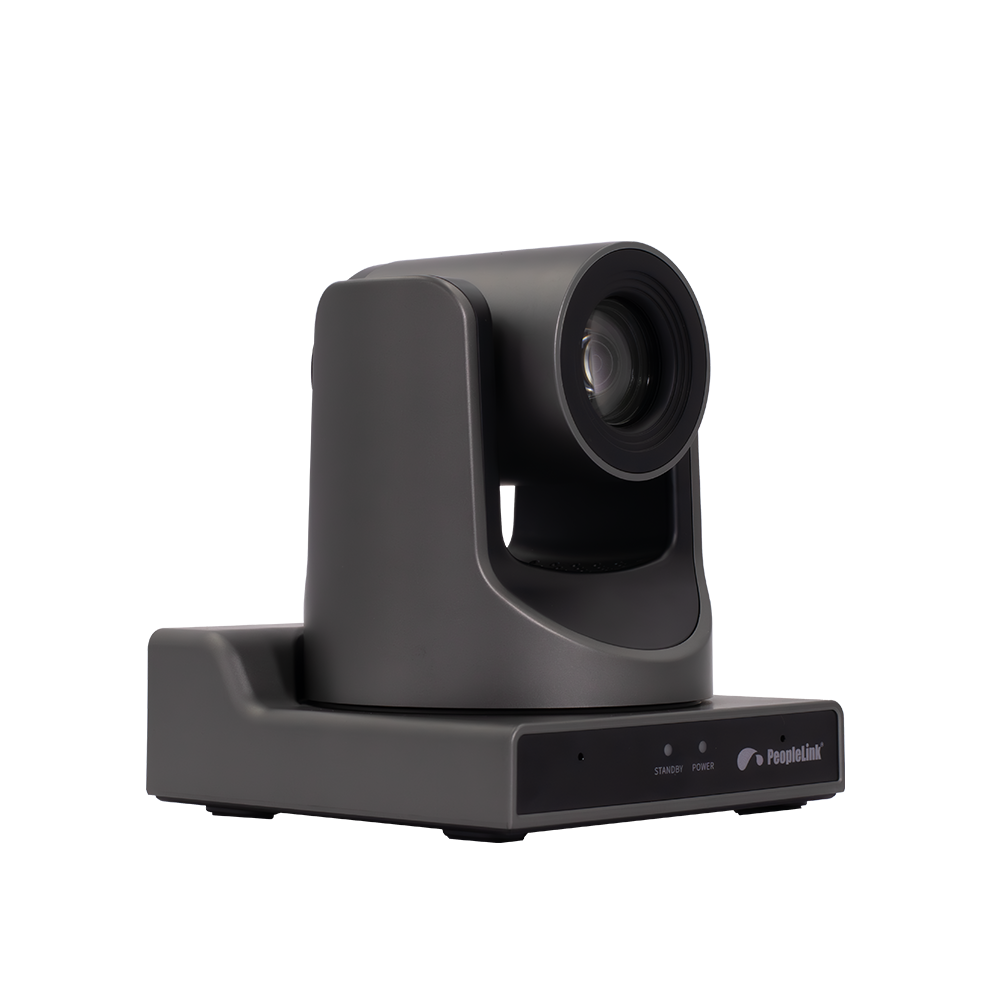

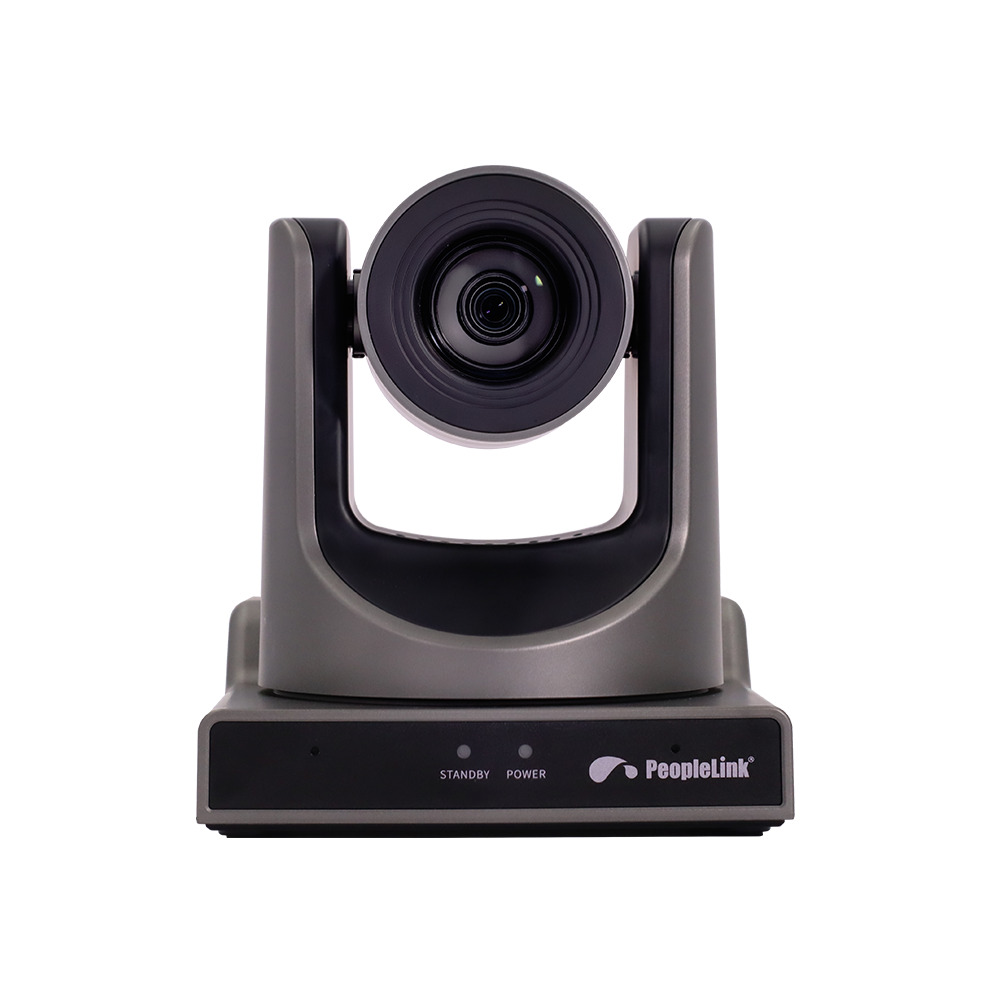

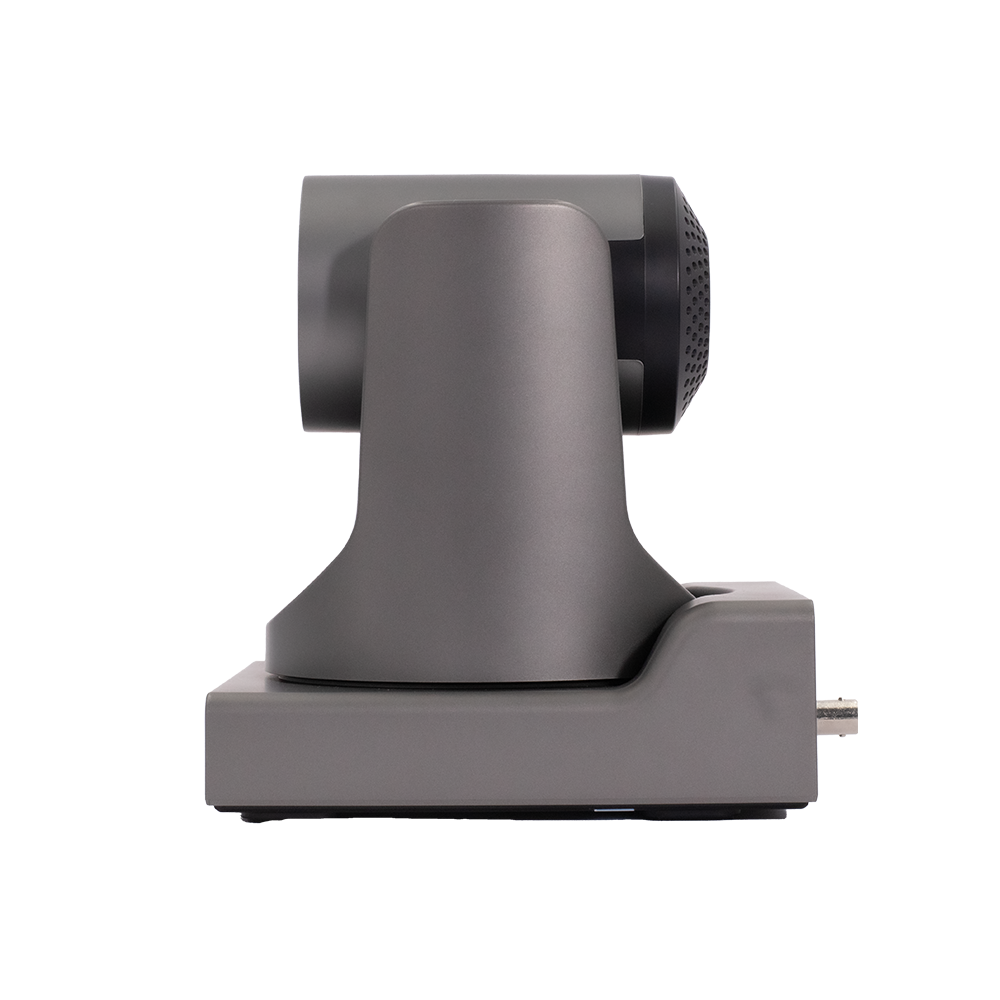

Transport yourself into a world of vivid imagery and stunning videos with the PeopleLink Elite XL 30x Camera. This camera delivers crystal-clear pictures with an impressive resolution of up to 1080p@60fps. With its dynamic 60.7° wide-angle lens and powerful 30x optical zoom, you can control your visuals completely. Effortlessly adjust the horizontal and vertical angles with the IR feature and various interfaces. Forget about the hassle of repeatedly adjusting your settings - the camera's 255 preset memories allow you to access your preferred configurations conveniently. Connect effortlessly using IP, HDMI, 3G SDI, or USB 3.0 type A and explore various image output possibilities. With customizable white balance and image flip capabilities, you can easily customize your experience to match your preferences.
Powered by a 1/2.8-inch CMOS sensor with 2.07 million effective pixels, our Elite 30X PTZ Camera achieves a maximum 1920 x 1080 high resolution. Immerse yourself in superior image quality for a truly immersive video conferencing experience. Stay ahead with an impressive output frame rate of up to 60fps in 1080P. Enjoy smooth, high-quality video playback, ensuring every detail is captured precisely.
Featuring a high-quality super-telephoto lens, our 30X PTZ Camera offers an impressive 30x optical zoom and an additional 8x digital zoom. Zoom in with precision to capture every detail of your video meetings.
Smooth Capturing via AI-Based Tracking. Transform your filming with AI technology driven by clothes, shape, hair, and facial characteristics that allow you clothing person tracking based on the self-clever subject monitoring by perfectly framing them.
It is the world's leading H.265 encoding-supported conference video camera – revolutionizing video streaming with full HD 1080p quality at ultra-low bandwidth. Experience cutting-edge technology for seamless video meetings. Take your sound quality higher with AAC audio encoding, featuring an external mic adds and to line-in input for better performance and greater bandwidth throughout.
Benefit from the high SNR of the CMOS sensor and advanced 2D and 3D noise reduction algorithms. Overcome the challenge posed by low-light environments with aplomb as the high signal-to-noise ratio (SNR) achieved combined with 2D and 3D noise reduction algorithms results in pristine images even when filming under dim lighting conditions.

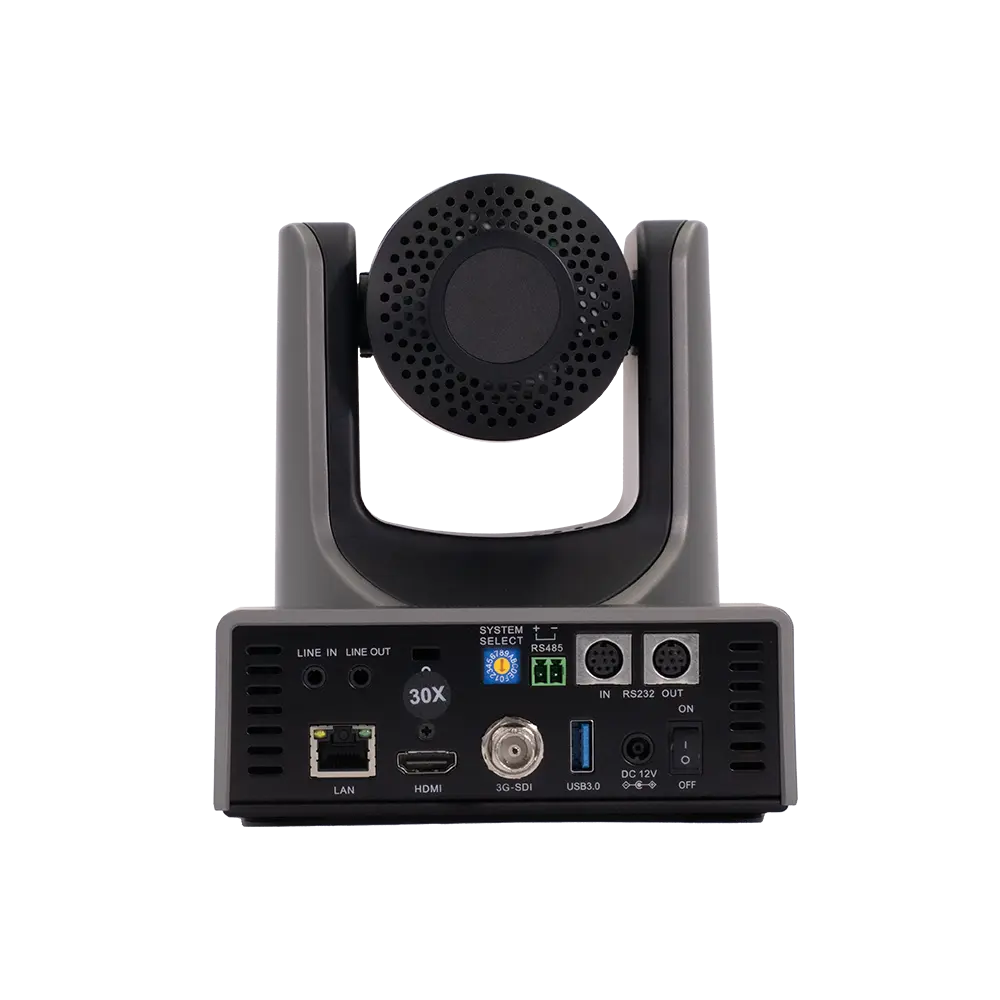

Enjoy versatile connectivity options with HDMI & USB output, 3G-SDI interface, and simultaneous output through HDMI, SDI, and Network interfaces. Transmit effectively up to 150 meters (under 1080p@30), providing flexibility in your video setup.

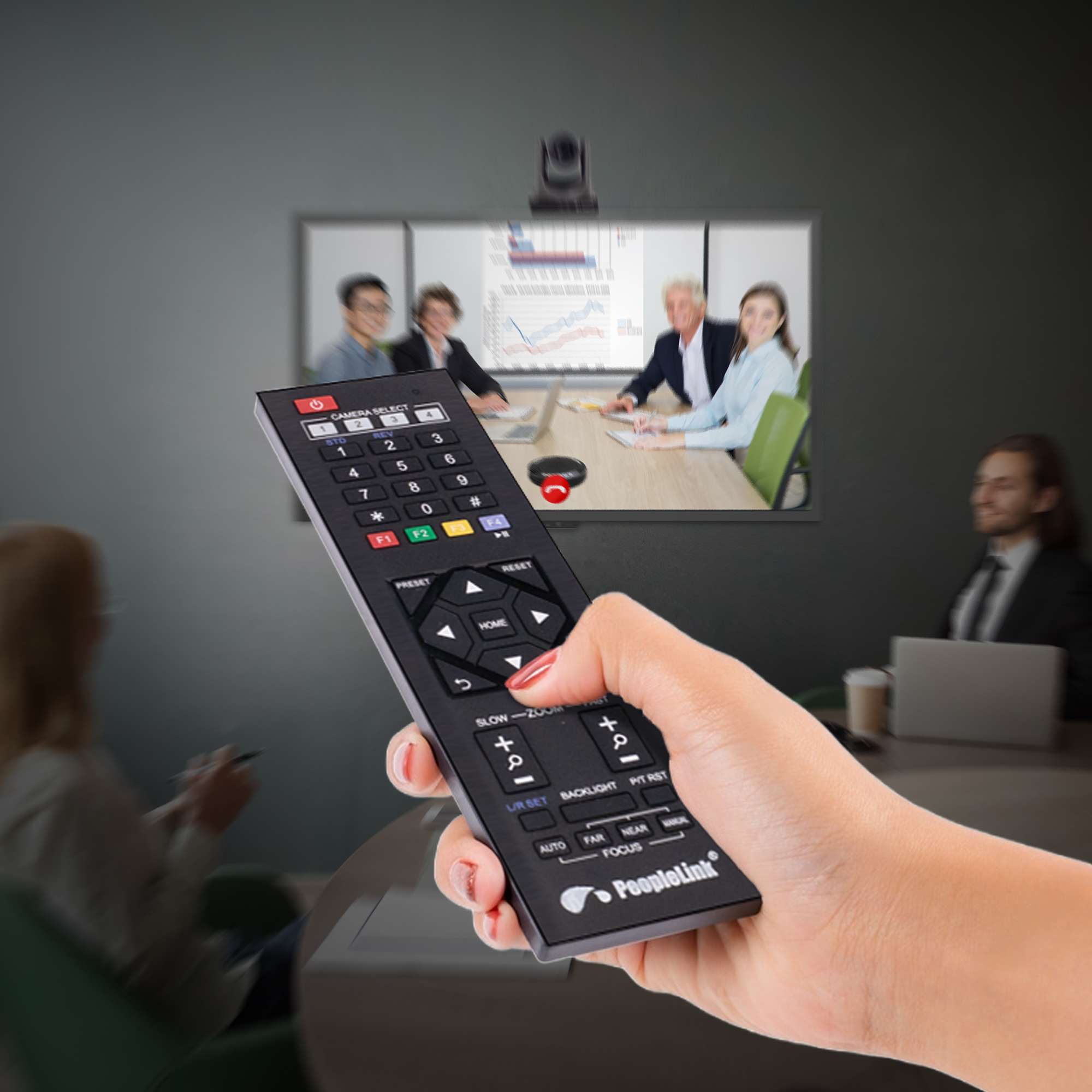

Enjoy the convenience of managing your video setup effortlessly from a distance. Complex Remote Precision Control with Several Ports. From your desk, control it by RS 232/485 and USB ports, giving the commands to the remote control with a precision that you can have directing-like orders.
| Image Sensor | : 1/2.8", CMOS Sensor, Effective Pixel: 2.07 Megapixels |
| Image Resolution | : FHD 1080p @60fps |
| Optical Zoom | : 30x Optical Zoom |
| Digital Zoom | : 8x Digital Zoom |
| Field of View | : 72.5° Degree FOV |
| Focal Length | : Focus Length: f4.42mm ~ 88.5mm, F1.8 ~ F2.8 |
| Shutter Speed | : 1/30s ~ 1/10000s |
| Minimal Illumination | : 0.5 Lux @ (F2.0, AGC ON) |
| Digital Noise Reduction | : 2D&3D Digital Noise Reduction |
| Video Compression | : YUY2, H.264 / MJPEG Compression |
| PAN | : Horizontal Rotation ±170° |
| Tilt | : Vertical Rotation -30° ~ 90° |
| Presets | : Number of Preset 255 |
| Video Outputs | : USB 3.0 Type-A, HDMI, 3G-SDI, RJ45, RS232, Line In/Out |

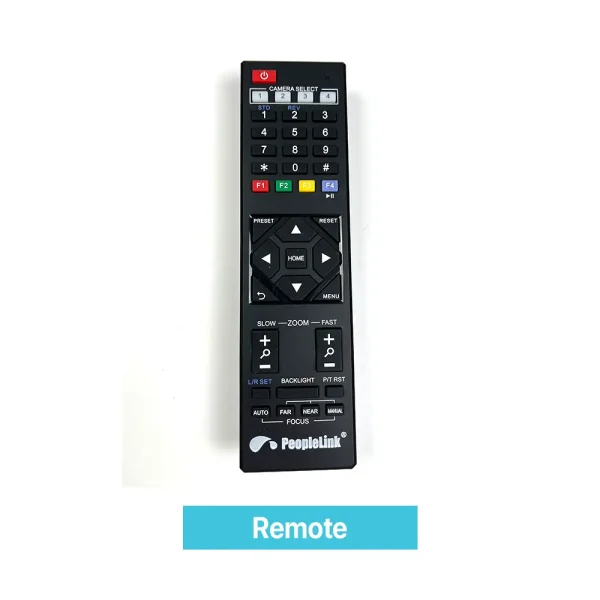

| Remote | : IR Remote Controller |
| Application | : Meeting Rooms, Conference Rooms, Classrooms, Auditoriums, Place of worship |
| Parameter | Elite 4K Premium Series 12X | Elite 4K Premium Series 20X | Elite XL Series 30X |
|---|---|---|---|
| Image | /images/wp-content/uploads/2019/09/Elite-12X.webp | /images/wp-content/uploads/2021/10/Elite-XL-Camera-1-300x300.png | /images/wp-content/uploads/2019/09/Elite-20X.webp |
| Image Sensor | 1/2.5 inches'', CMOS, Effective Pixel: 8.51 Megapixels | 1/2.8 inches'', CMOS, Effective Pixel: 8.42 Megapixels | 1/2.8'', CMOS, Effective Pixel: 2.07 Megapixels |
| Image Resolution | 4k@30fps,1080p@30fps | 4k@30fps,1080p@30fps | FHD 1080p/60fps |
| Optical Zoom | 12x Optical Zoom | 20x Optical Zoom | 30x Optical Zoom |
| Digital Zoom | 16x Digital Zoom | 16X Digital Zoom | 8X Digital Zoom |
| Field of View | 78° Diagonal Field of View | 66.6° Diagonal Field of View | 60.7° Field of View |
| Focal Length | f4.4mm ~ 52.8mm, F1.8 ~ F2.6 | f3.47mm ~ 41.65mm, F1.84 ~ F3.72 | f4.42mm ~ 132.6mm, F1.8 ~ F2.8 |
| Shutter Speed | 1/30s ~ 1/10000s | 1/30s ~ 1/10000s | 1/30s ~ 1/10000s |
| Minimal Illumination | 0.5 Lux @ (F1.8, AGC ON) | 0.5 Lux @ (F1.8, AGC ON) | 0.5 Lux @ (F2.0, AGC ON) |
| Digital Noise Reduction | 2D&3D Digital Noise Reduction | 2D&3D Digital Noise Reduction | 2D&3D Digital Noise Reduction |
| Video Compression | YUY2, H.264 / MJPEG Compression | YUY2, H.264 / MJPEG Compression | YUY2, H.264 / MJPEG Compression |
| PAN | Horizontal Rotation ±170° | Horizontal Rotation ±170° | Horizontal Rotation ±170° |
| Tilt | Vertical Rotation -30° ~ 90° | Vertical Rotation -30° ~ 90° | Vertical Rotation -30° ~ 90° |
| Presets | Number of Preset 255 | Number of Preset 255 | Number of Preset 255 |
| Video Outputs | USB 3.0 Type-C, HDMI, RJ45, RS485, RS232, Line In/Out | USB 3.0 Type-C, HDMI, RJ45, RS485, RS232, Line In/Out | USB 3.0 Type-A, HDMI, 3G-SDI, Rj45, RS232, Line In/Out |

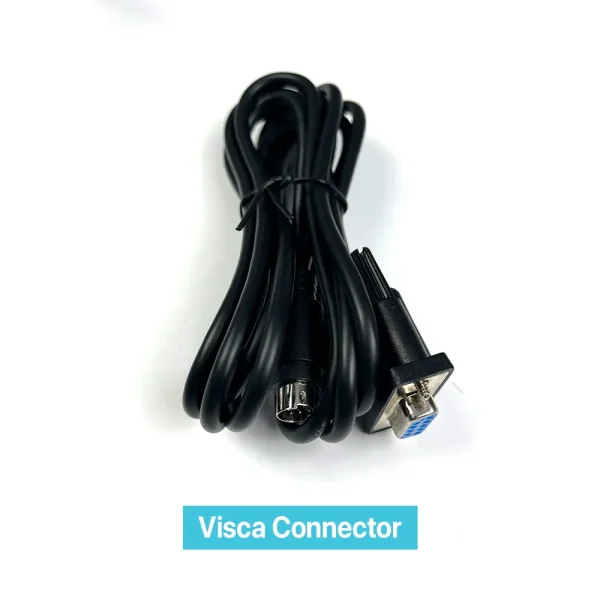

| Control Protocol | VISCA/ Pelco-D/ Pelco-P | VISCA/ Pelco-D/ Pelco-P | VISCA/ Pelco-D/ Pelco-P |
| Remote | IR Remote Controller | IR Remote Controller | IR Remote Controller |
| Application | Meeting Rooms, Conference Rooms, Classrooms, Auditoriums, Place of worship | Meeting Rooms, Conference Rooms, Classrooms, Auditoriums, Place of worship | Meeting Rooms, Conference Rooms, Classrooms, Auditoriums, Place of worship |
| Certifications & Approvals | CE, ROHS and FCC | CE, ROHS and FCC | CE, ROHS and FCC |
Disclaimer: Features and specifications are subject to change without prior notification, Images shown here are for representational purpose only, actual may vary.
