This smart Teacher tracking and board writing detection system has a USB HD lecturer tracking camera (USB 3.0, DVI, SDI supported) and an IP board writing detecting sensor. The configuration and installation of the system have always been challenging and effective. The unique performance of the system is that the sensor detects writing actions on the board. It triggers the lecturer tracking camera to automatically move to the pre-defined board position and start tracking the lecturer there. If undetected, the lecturer tracking camera can keep tracking the lecturer to return to a pre-defined work and start tracking there.

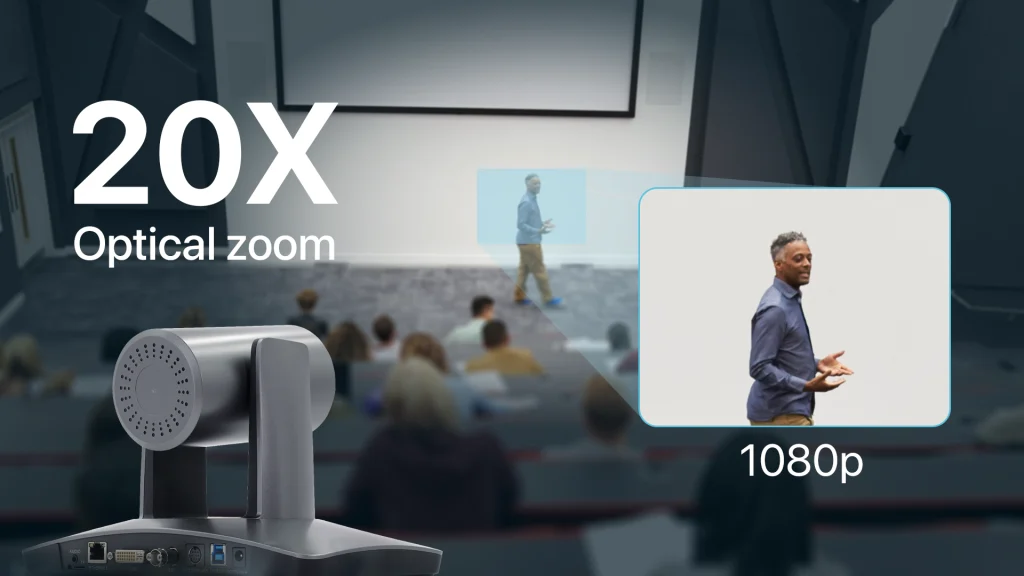

With PeopleLink iCam FHD-LT20X! Revel in 1080P high-resolution visuals, 20x optical zoom, and 12x digital zoom, and with a 59.5° horizontal filed of view, capture every angle with cinematic flair. It's not just a camera; it's your window to an immersive educational journey.
Spotlight on Brilliance! This teacher track camera constantly detects the presenter in the classroom, then automatically pan-tilts and zooms to the appropriate positions to frame the presenter; once the number of attendees (s) changes, the camera will adjust the framing positions accordingly.

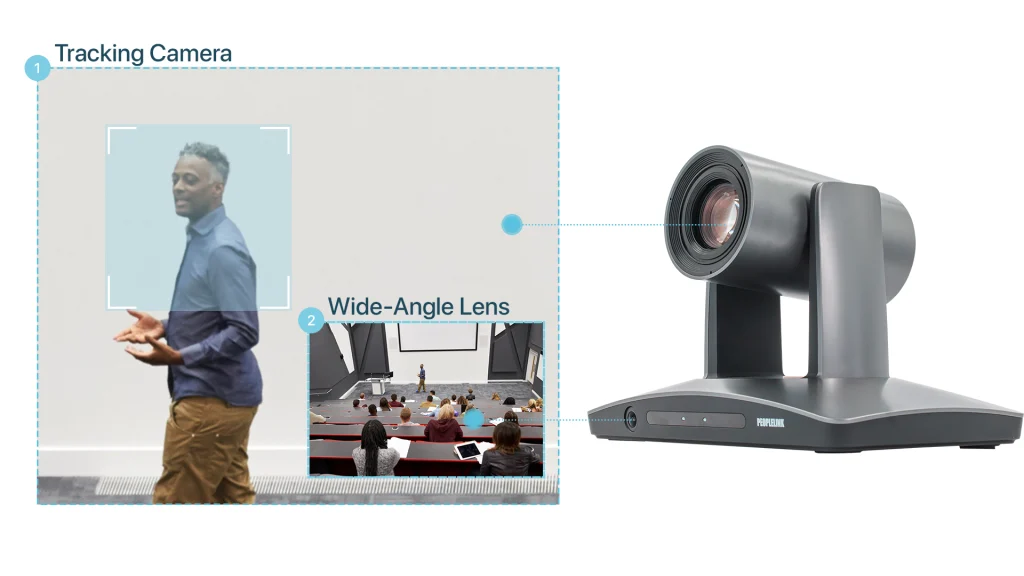

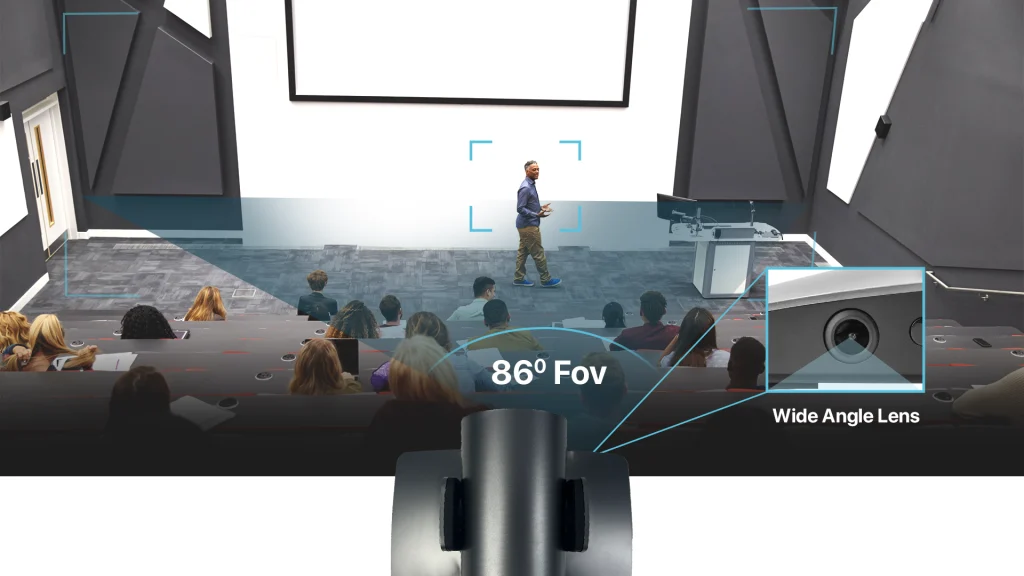

This Tracking camera has dual lenses and one mission—total tracking domination! The small HD wide-angle lens detects attendees with an 86° horizontal FOV, while the big tracking camera frames positions based on the attendee count. Forget complexities; the Tracker itself does everything, and this all-in-one solution is your VIP pass to effortless installation and management.

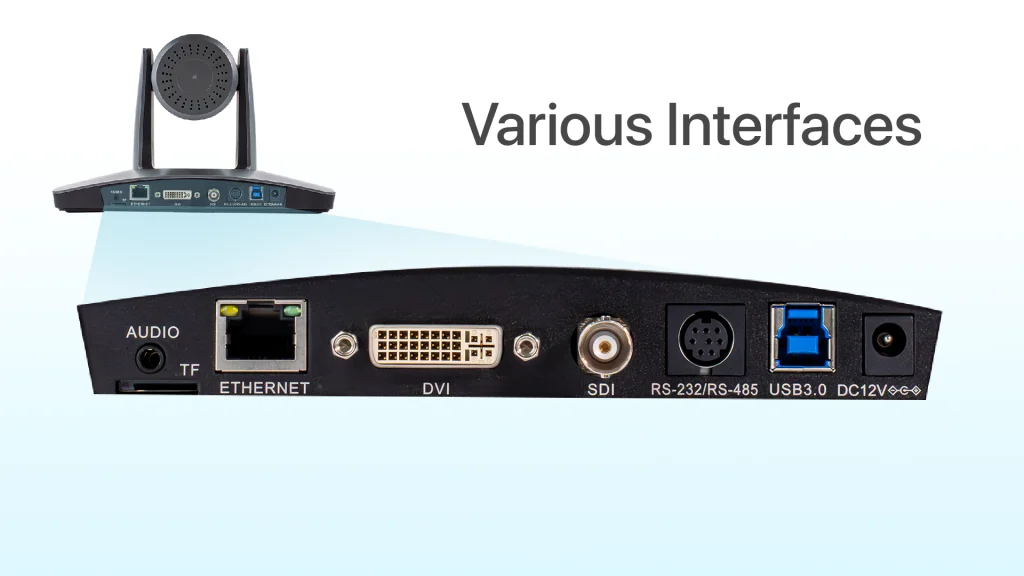

Connectivity Unleashed! This camera boasts 3G-SDI, DVI-D, RS232/RS485 interfaces, and Ethernet/USB2.0 connections. It's the ultimate compatibility maestro, syncing seamlessly with your video conferencing systems—whether software or hardware.
The icam FHD-LT 20x's dual-sensor system flawlessly switches between tracking a lecturer and framing a scene. Ideal for conferences or dynamic classroom interactions, it's the solution to capture every moment with finesse.

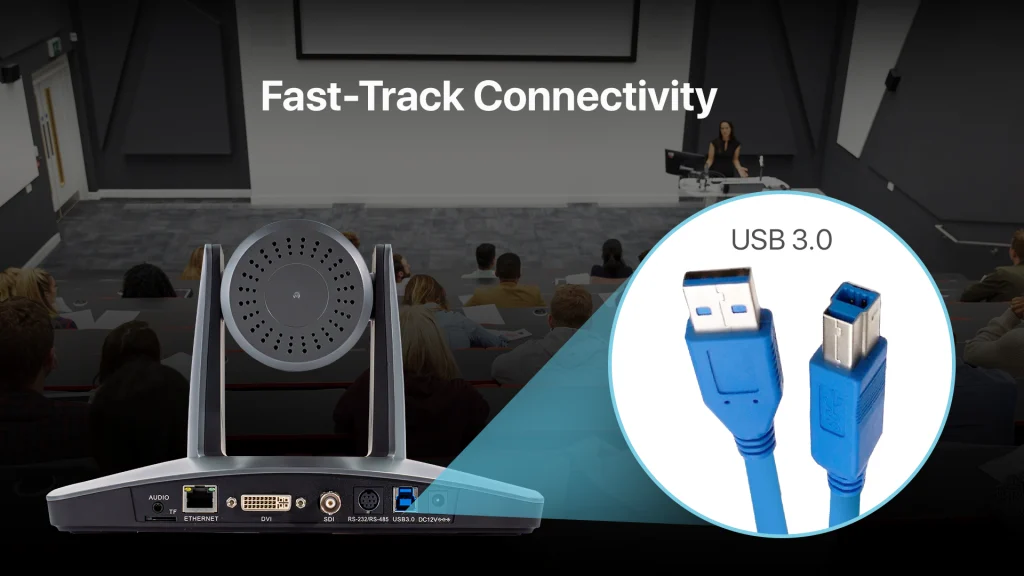

The lecturer tracking camera has USB3.0 and diverse video interfaces. It's the speedster of the tech world, ensuring compatibility with various recording solutions.

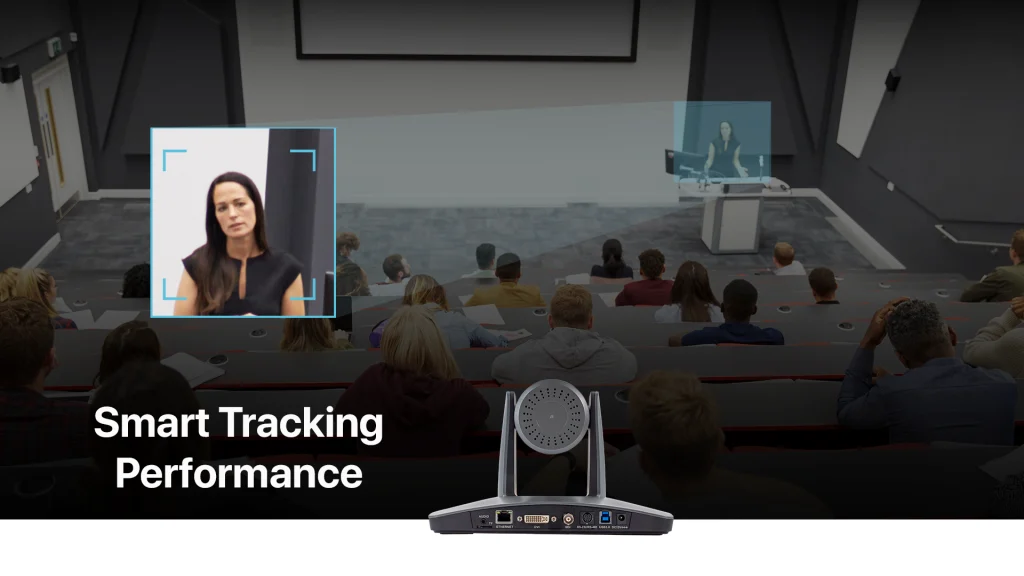

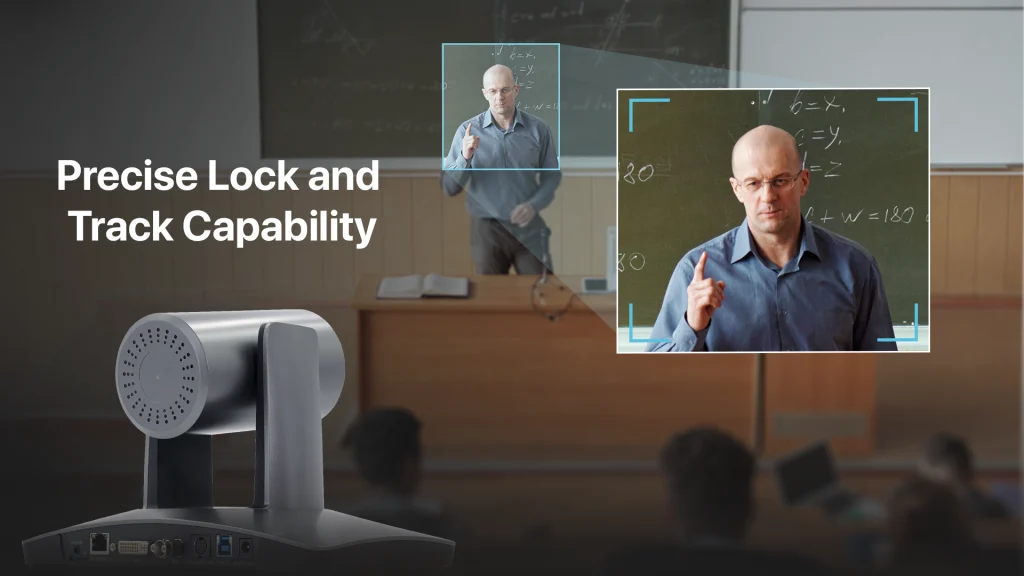

Lock and Load! Powered by face and motion detection, this tracking system ensures smooth and precise lock & track performance, even in the most dynamic scenarios.
Intelligence in Motion! Tilt motion and auto-zoom functions ensure the system smartly tracks the lecturer. It gracefully returns to the pre-defined position, if lost, ready to dazzle with its tracking prowess.

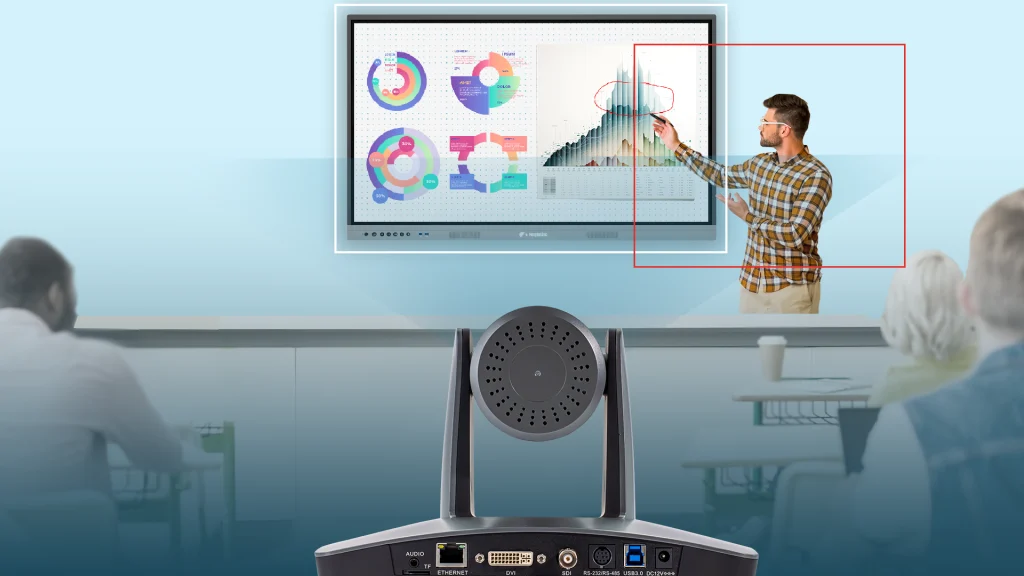

The board writing detection camera cues the lecturer tracking camera to dance to the pre-defined board position upon detecting writing actions. It's a dynamic duo, ensuring your visuals sync seamlessly with your lessons.
Power Cable & Adapter

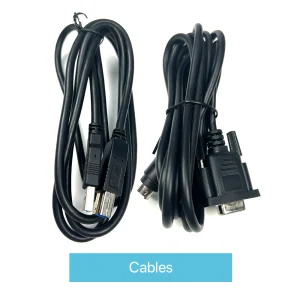

Cables 1

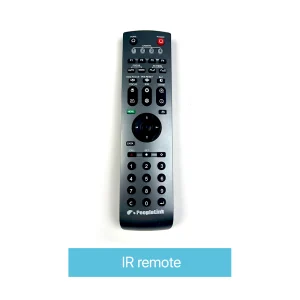

IR Remote

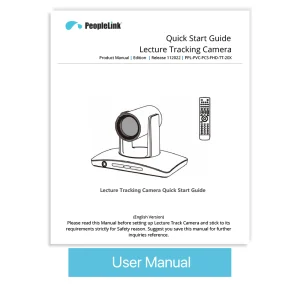

User Manual
| Image Sensor | : 1/2.8" Exmor CMOS, 2.14MP |
| Image Resolution | : FHD 1080p@60fps |
| Optical Zoom | : 20x Optical Zoom |
| Digital Zoom | : 12x Digital Zoom |
| Field of View | : 59.5° Field Of View |
| Focal Length | : f=4.7mm～94mm |
| Focus | : Auto, Manual, PTZ Trigger |
| Digital Noise Reduction | : 2D & 3D digital noise reduction |
| White Balance | : Auto |
| PAN | : 170°～+170° |
| Tilt | : 30°～+90° |
| Video Outputs | : USB3.0, HD-SDI, IP and DVI |
| Control Interface | : RS-485, RS-232, USB3.0 |
| Control Protocol | : PELCO-D, VISCA, UVC |
| Video Compression | : H.265/ H.264/MJPEG |
| Storage | : TF Card |
| Dual Stream | : Dual Stream Support |
| Certifications & Approvals | : CE, ROHS and FCC |
| Parameter | PeopleLink Teacher/Student 20X Camera | Speaker Track Camera | Speaker Track Pro Camera |
|---|---|---|---|
| Image | /images/wp-content/uploads/2019/09/Teacher_Student-Track.webp | /images/wp-content/uploads/2019/09/Speaker-Track-camera-standard_Front-view150-150.webp | /images/wp-content/uploads/2019/09/Speaker-Track-pro-camera150-150.webp |
| Image Sensor | Sensor: 1/2.8" Exmor CMOS, 2.14MP | Sensor: PTZ Camera: 1/2.8" 2.13MP CMOS | Sensor: 1/2.8" 2.14MP CMOS |
| Image Resolution | FHD 1080p@60fps | FHD 1080p@60fps | FHD 1080p@60fps |
| Optical Zoom | 20x Optical Zoom | 12x Optical Zoom | 12x Optical Zoom (Dual lens) |
| Digital Zoom | 12x Digital Zoom | 12x Digital Zoom | 12x Digital Zoom (Dual lens) |
| Field of View | 59.5° Field Of View | 72.5° Field Of View | 72.5° Field Of View (Dual lens) |
| Focal Length | f=4.7mm～94mm | 3.9mm ~ 46.8mm | 4.9mm ~ 94mm |
| Focus | Auto, Manual, PTZ Trigger | Auto, Manual, PTZ Push, One Push | Auto, Manual, PTZ Push, One Push |
| Illumination | 0.5 lux (Color), 0.1lux (B/W) | 0.5Lux (Color), 0.1Lux (B/W) (F1.6-F2.8, AGC ON) | 0.5Lux (Color), 0.1Lux (B/W) |
| Digital Noise Reduction | 2D﹠3D | 2D﹠3D | 2D﹠3D |
| White Balance | Auto, Indoor, Outdoor, One Push, Manual, Auto Tracking | Auto, Indoor, Outdoor, One Push, Manual, Auto Tracking | Auto, Indoor, Outdoor, One Push, Manual, Auto Tracking |
| PAN | 170°～+170° | 90 ~ -90° | 90 ~ -90° |
| Tilt | 30°～+90° | 90 ~ -30° | 90 ~ -30° |
| Video Outputs | USB3.0, HD-SDI, IP and DVI | HDMI / SDI / Ethernet or USB2.0, Line In/out | HDMI / SDI / Ethernet or USB2.0 |
| Control Interface | RS-485, RS-232, USB3.0 | RS-232 / Ethernet | RS-232 / Ethernet |
| Control Protocol | PELCO-D, VISCA, UVC | VISCA | VISCA, PELCO-P, PELCO-D |
| Video Compression | H.265/H.264/MJPEG | H.264, H.265, MJPEG | H.264, H.265, MJPEG |
| Storage | Local Storage: TF Card | 64 Presets | 256 Presets |
| Dual Stream | Dual Stream Support | Dual Stream: Support 1 Tracking, 1 Full-View | Dual Stream Support |
| Certifications & Approvals | CE, ROHS and FCC | CE, ROHS and FCC | CE, ROHS and FCC |
Disclaimer: Features and specifications are subject to change without prior notification, Images shown here are for representational purpose only, actual may vary.
