PeopleLink Instacontroller is a control system that integrates with IP devices including them into a larger control network. This system can be integrated with any network, personal or commercial. This device offers secured and reliable connectivity with a wide range of IP devices, like touchscreens, computers, mobile devices, etc whether on-premises or at remote locations. The Instacontroller android app helps in controlling systems on LAN, WAN or Internet from any location across the globe.

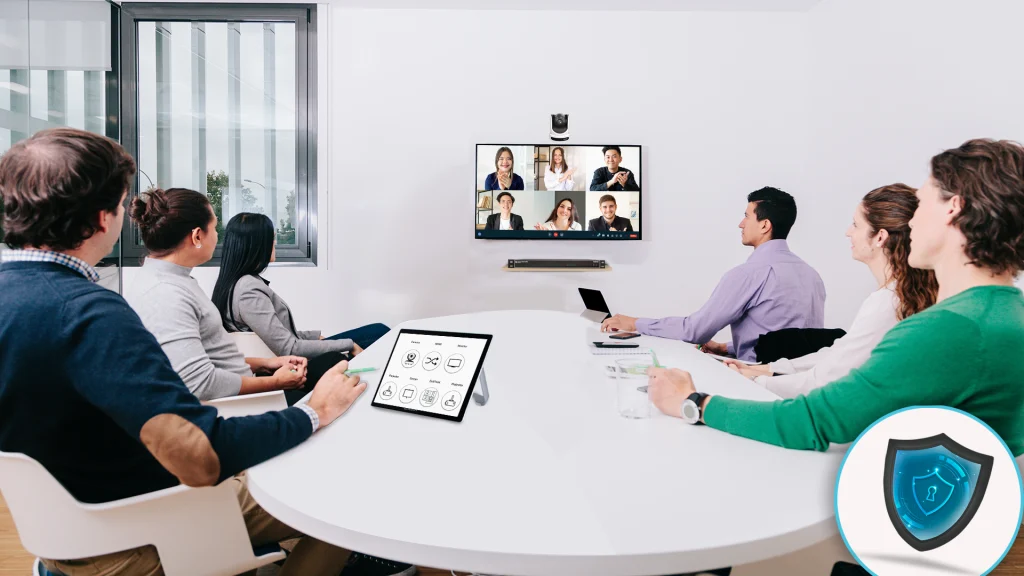

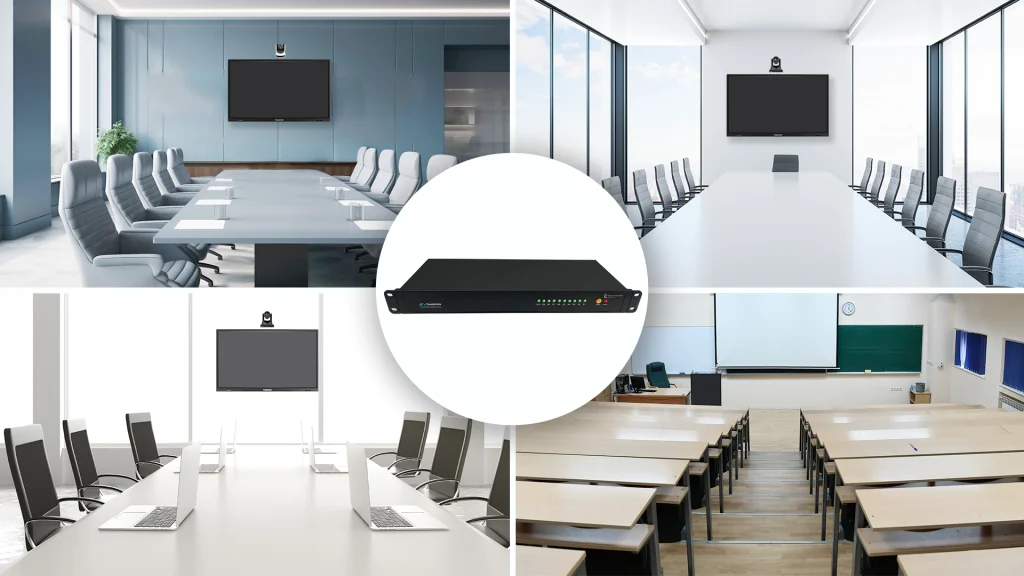

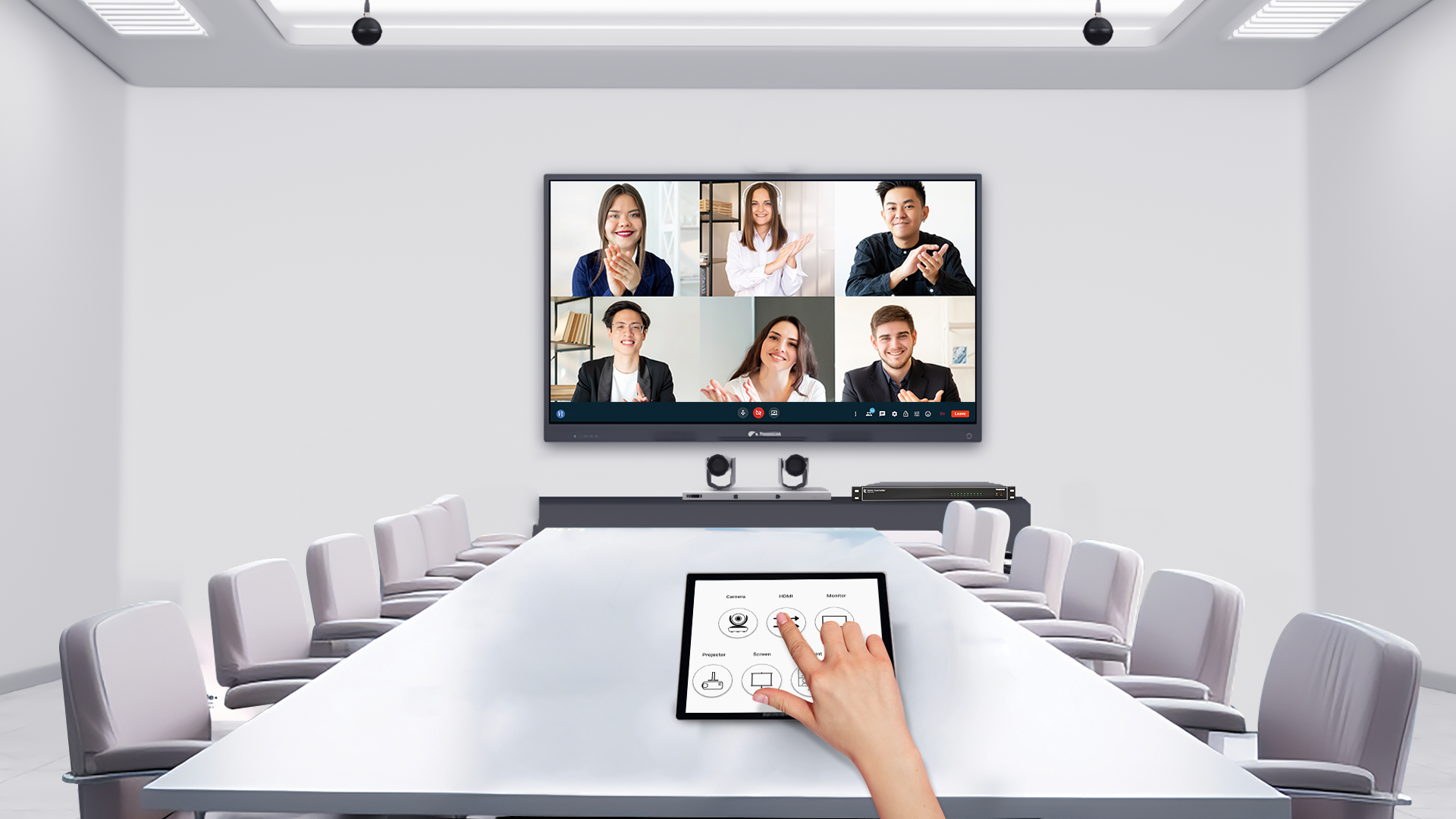

PeopleLink Instacontroller is perfect in many professional settings, including boardrooms, conference rooms, and training rooms. The system's secured and reliable connectivity guarantees seamless operations during important meetings, presentations, and training.

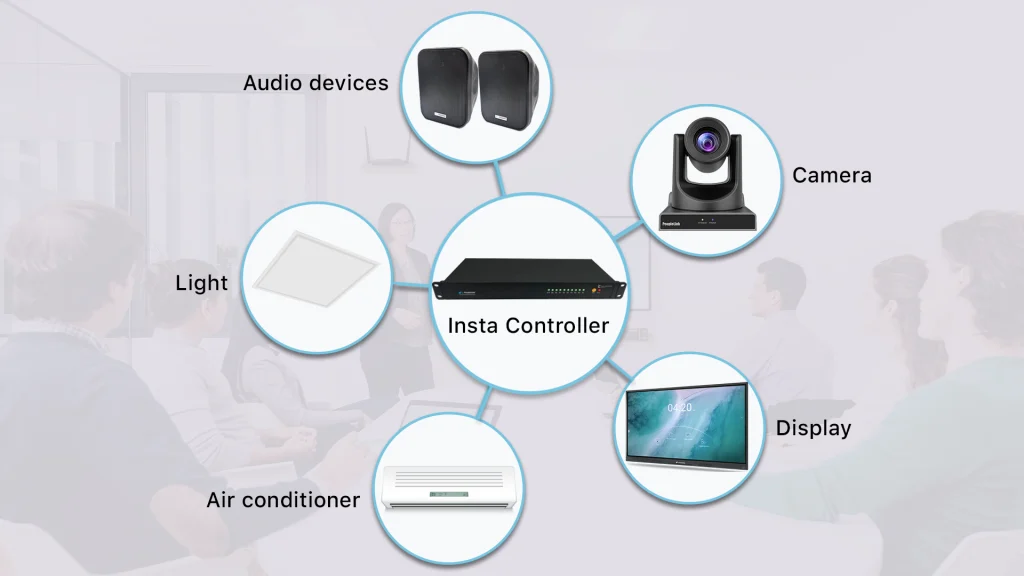

The IP system provides a smooth way of controlling and managing diverse equipment, such as cameras, speakers, Lights, AC, Displays etc. It has become a versatile, intelligent solution that boosts collaboration and productivity.
The security environment is provided through comprehensive user management, which is implemented by the Instacontroller feature that gives access control. This feature gives users fine-tuned permission control, thus preventing the leakage of confidential data.

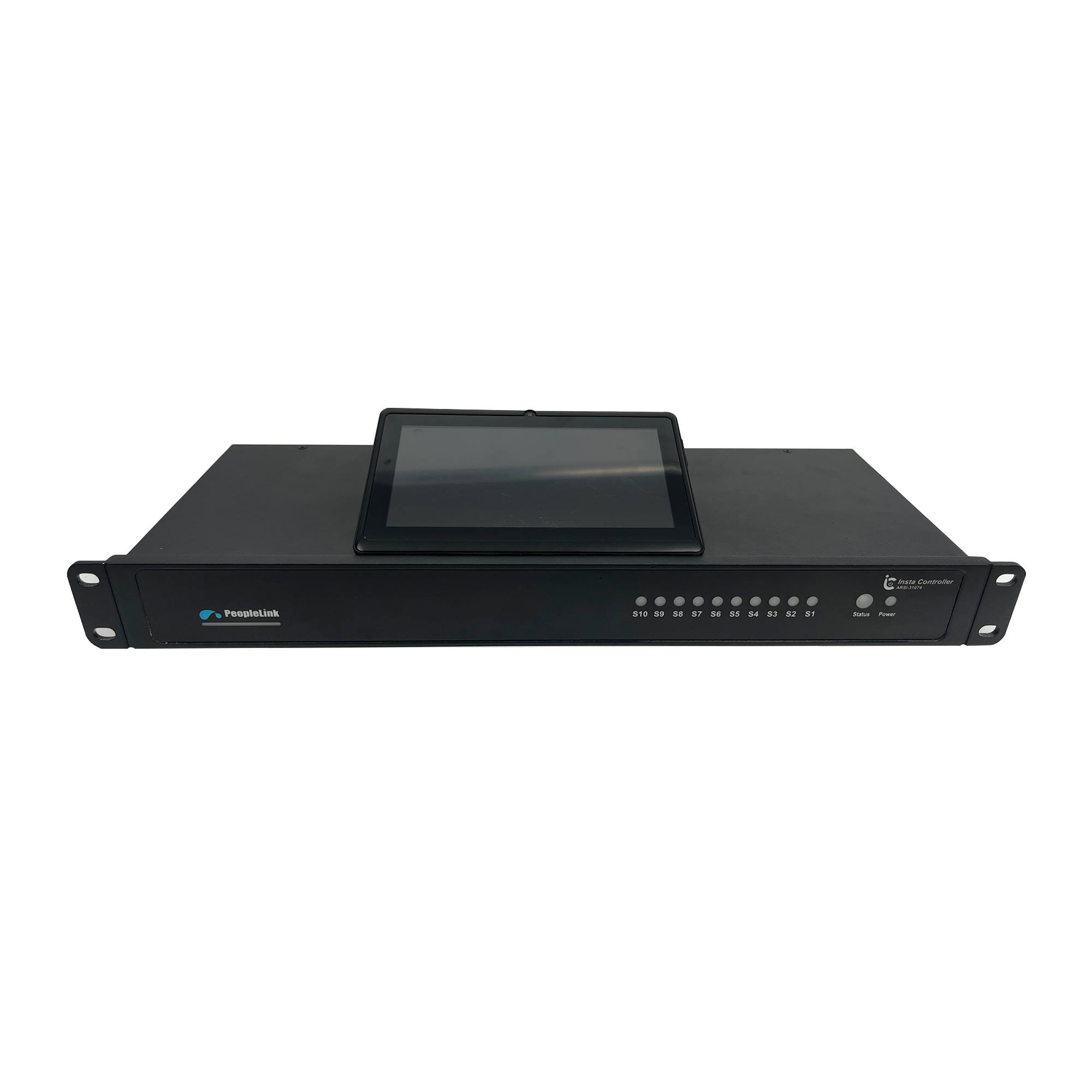

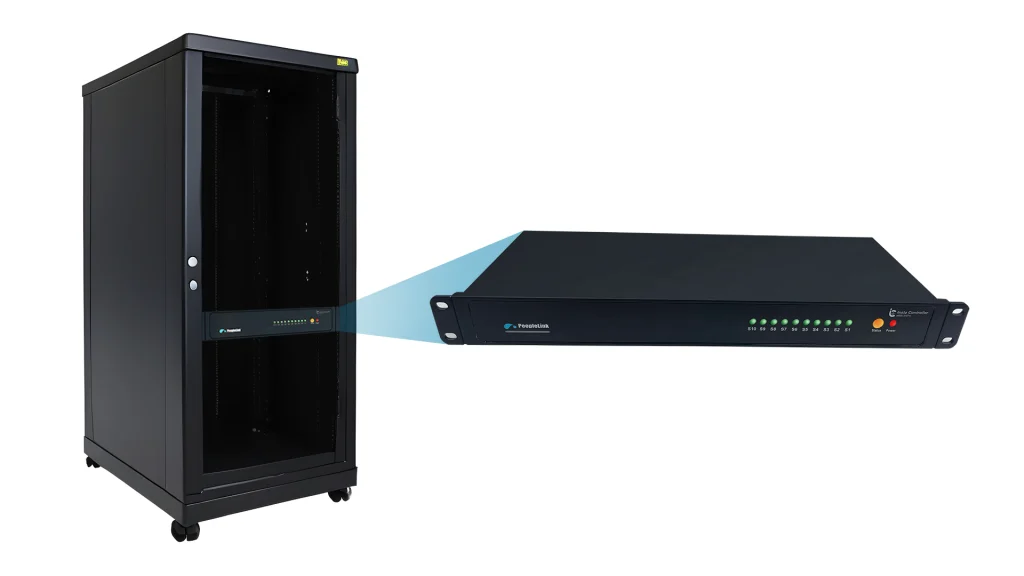

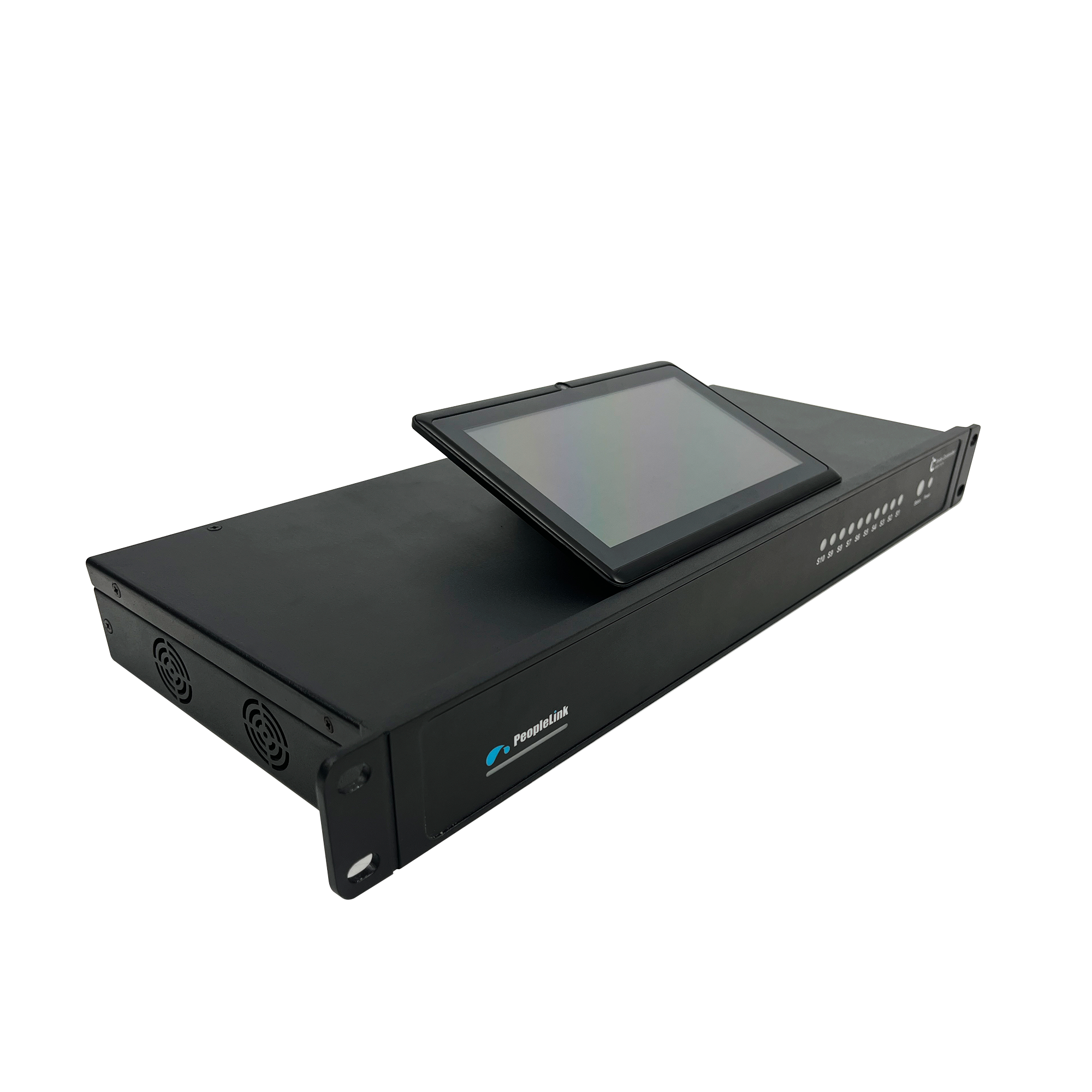

Instacontroller is a compact device with a design that allows it to fit into a standard/regular rack space. This 1U Space Rack mounting feature increases its convenience, making it friendly for workplaces that are intent on using space as fundamentally as they can.
The system makes it easy to monitor performance and efficiency. A solitary red LED on the front panel acts as a power indicator when an available power source is connected to the adaptor. An LED within the front panel switches to red after the power is switched on and switches to green when the controller is ready. The light-emitter-diodes on the front panel are used to confirm the status of the Relay Switch. Besides LEDs on the rear panel, it also offers a green indicator, letting users quickly check out its power, readiness, and network connectivity.

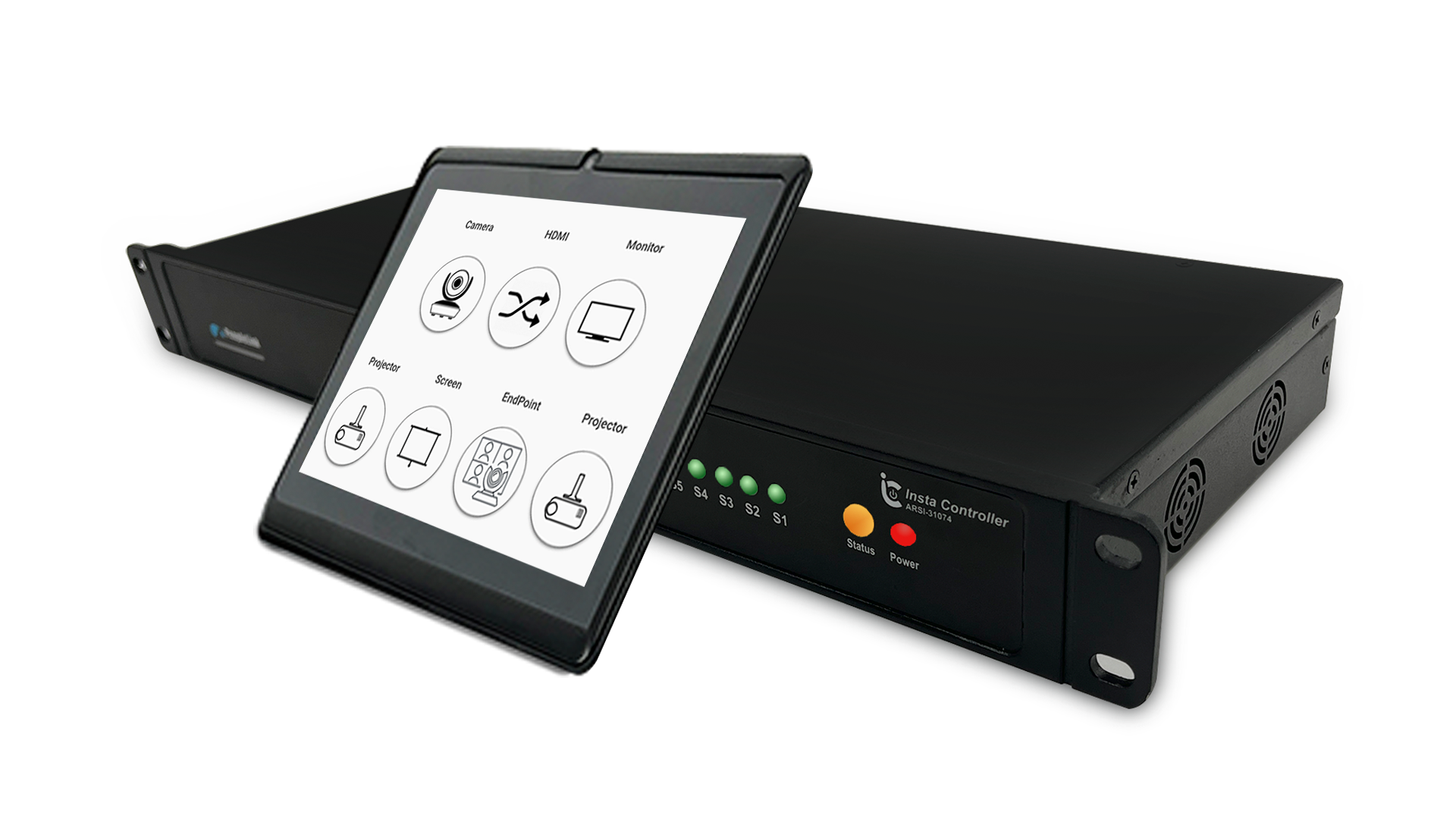

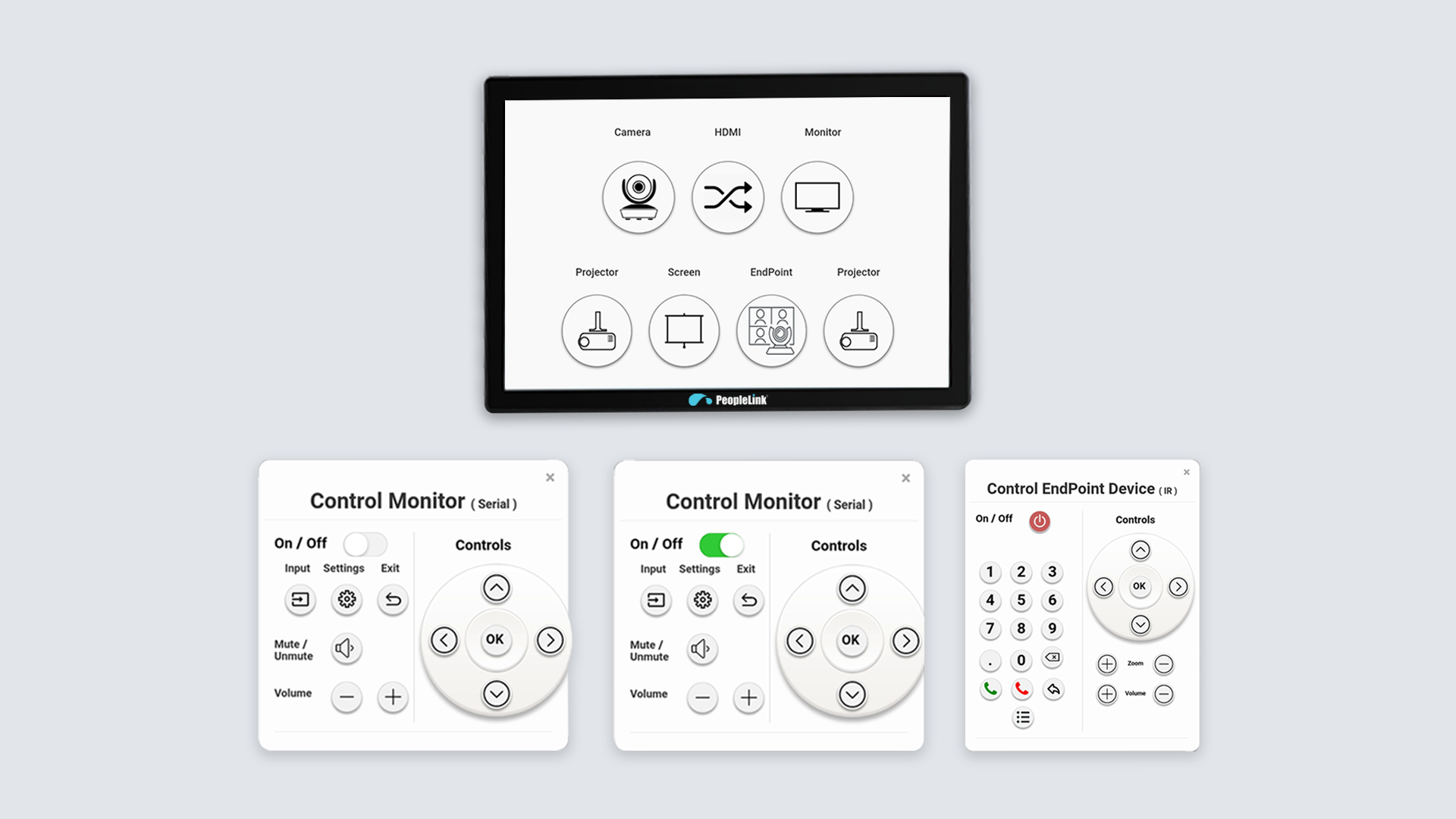

It has a 7″inch touchscreen controller, which helps control external devices. The screen is connected to every other device available in the room. The Instacontroller brings all the devices, whether the projectors, cameras, or lights, under your control within a single click.
The device runs on the Android platform to provide more accessible interactions to users. Its automation compliance architecture makes it even more adaptable while remaining compatible with other automated processes. It ensures users have pleasant and gentle handling. They can use the product simply and at the desired automation level.
PeopleLink offers customized applications that are compatible with your Instacontroller. This gives you the flexibility of tailoring an application according to your requirements.

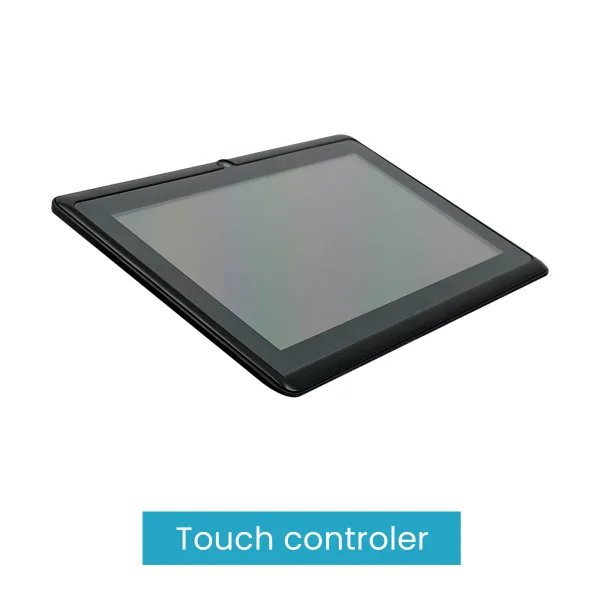

Touch Controller

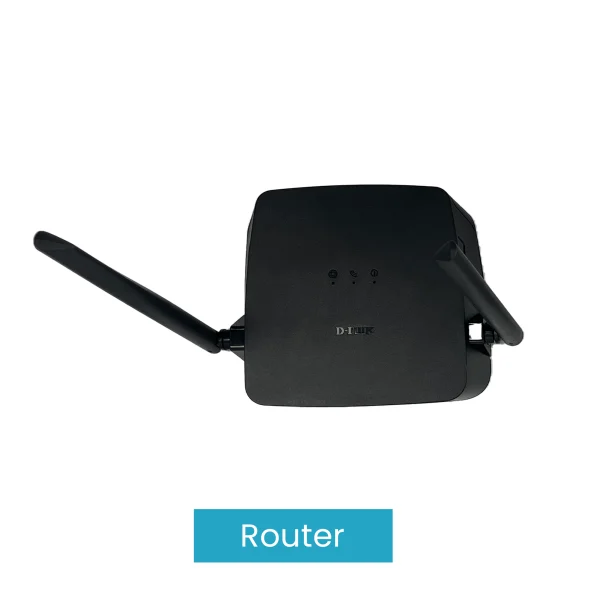

Router

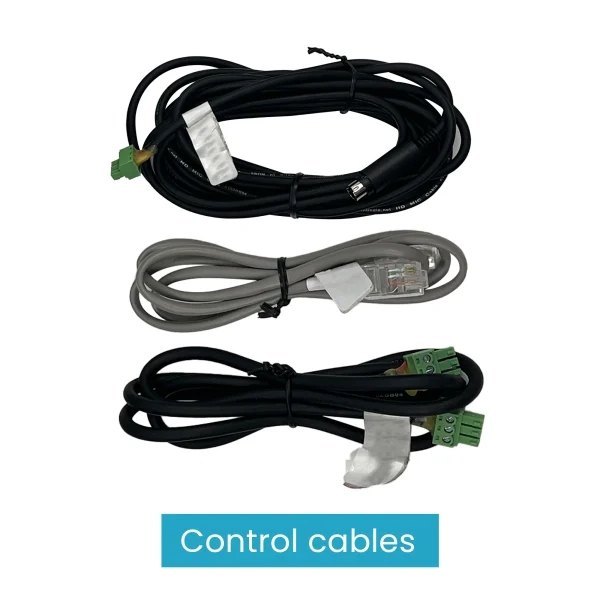

Control Cables

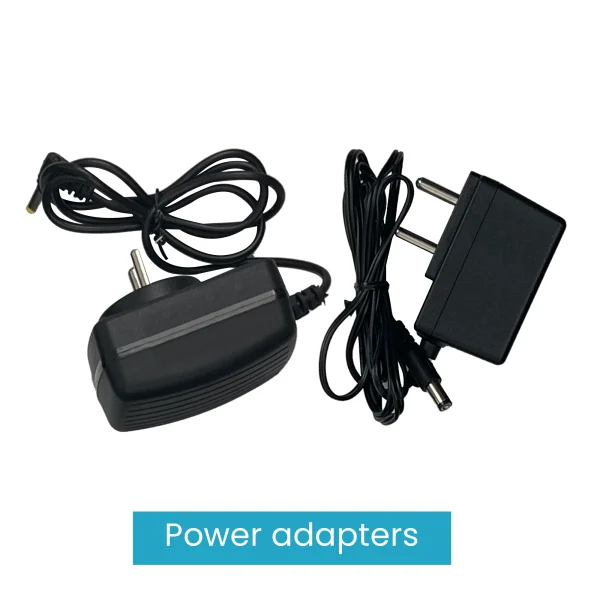

Power Adapters

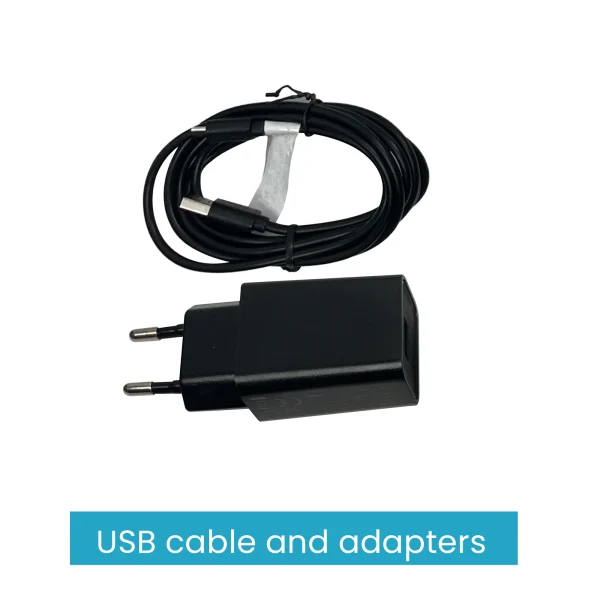

USB Cable & Adapters
| Parameter | Insta Controller RSI-552 | Insta Controller ARSI 31074 |
|---|---|---|
| Control System | Central Control System | Central Control System |
| Serial Ports | Two-way Device Control | Two-way Device Control |
| Analog | One-way Device Control | One-way Device Control |
| IR & Serial | Two-way Device Control | Two-way Device Control |
| Protocol | REST Protocol | REST Protocol |

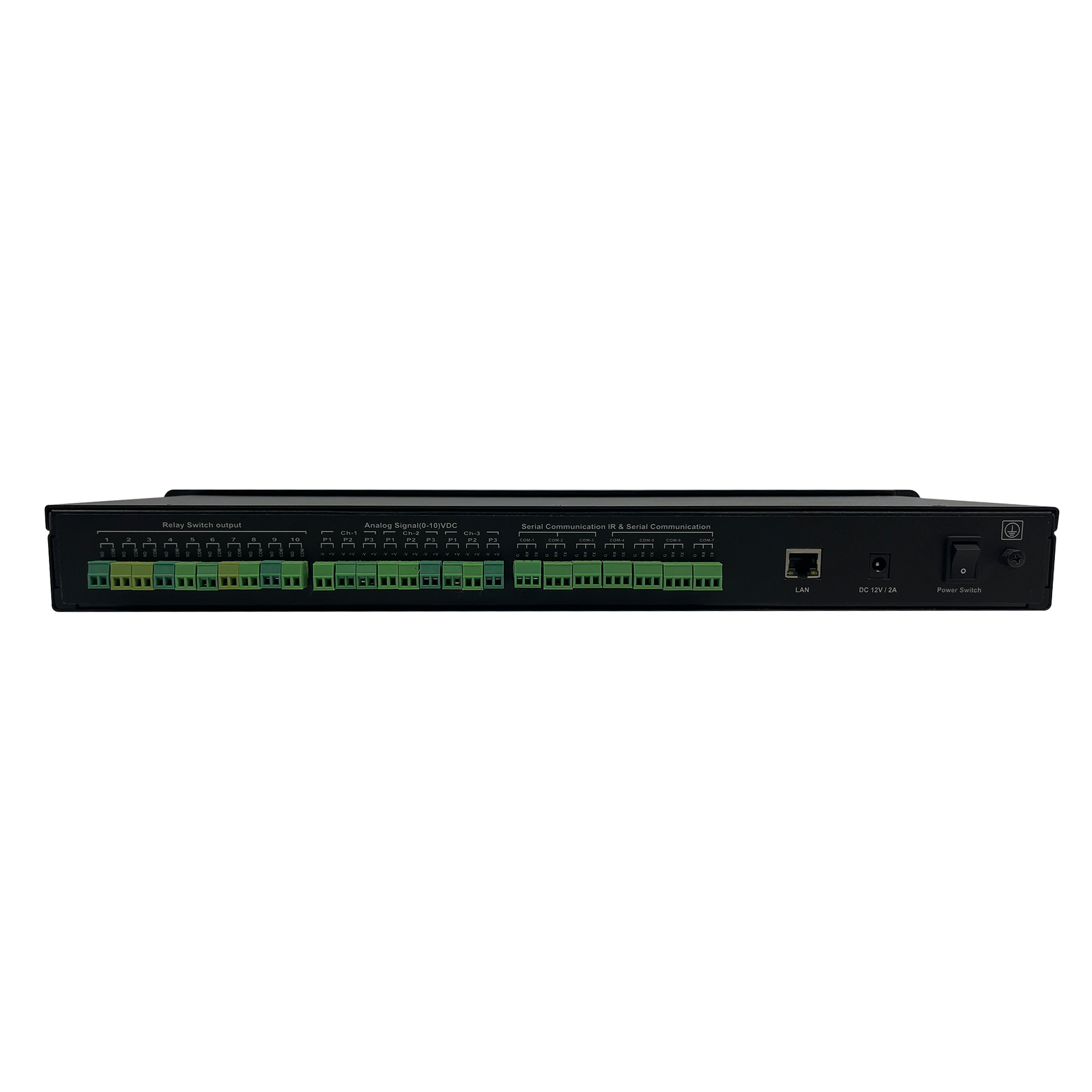

| Interface | Relay, Analog, Serial, IR & Serial, LAN, TMP-R | Relay, Analog, Serial, IR & Serial, LAN, TMP-R |
| Serial Output | 3 Nos Bi-directional RS-232 Ports | 3 Nos Bi-directional RS-232 Ports |
| IR & Serial Output | 2 Nos Hybrid RS-232/IR Ports | 4 Nos Hybrid RS-232/IR Ports |
| LAN | 1 Nos RJ-45 Port | 1 Nos RJ-45 Port |
| Relay Switch Output | 5 Nos High Voltage Relay Controls | 10 Nos High Voltage Relay Controls |
| Power Indicator | LED Front Panel | LED Front Panel |
| Status Indicator | LED Front Panel | LED Front Panel |
| Relay Switch Indicator | 5 LED's Front Panel | 10 LED's Front Panel |
| Control Pad | Yes | Yes |
| Control Pad Type | 7" Inches Touch Screen | 7" Inches Touch Screen |
| Resolution | FHD 1920x1080 | FHD 1920x1080 |
| Internal Memory | 2 GB | 2 GB |
| Interface | WiFi | WiFi |
| Mounting | 1U Rack-mounting | 1U Rack-mounting |
| Chassis Type | Metal | Metal |
| Application | Board room, Conference room, Seminar halls, Classroom | Board room, Conference room, Seminar halls, Classroom |
Disclaimer: Features and specifications are subject to change without prior notification, Images shown here are for representational purpose only, actual may vary.
