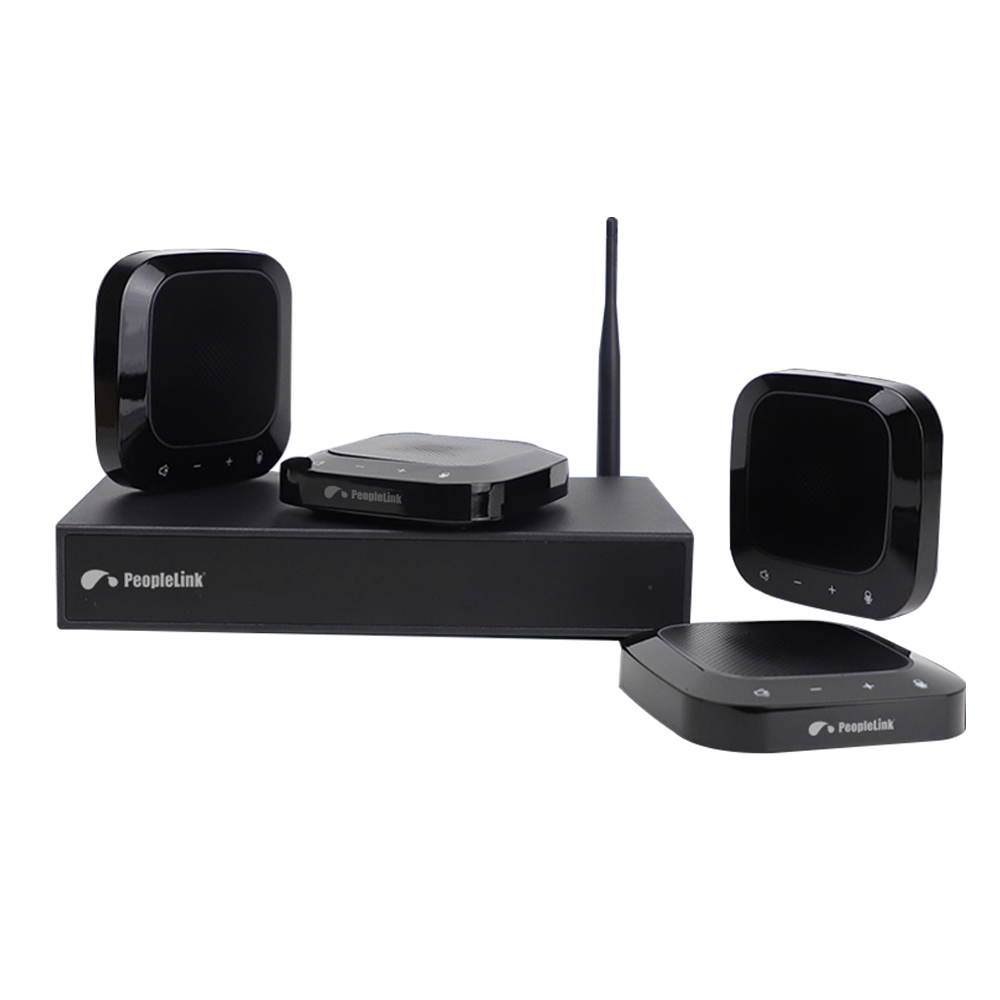

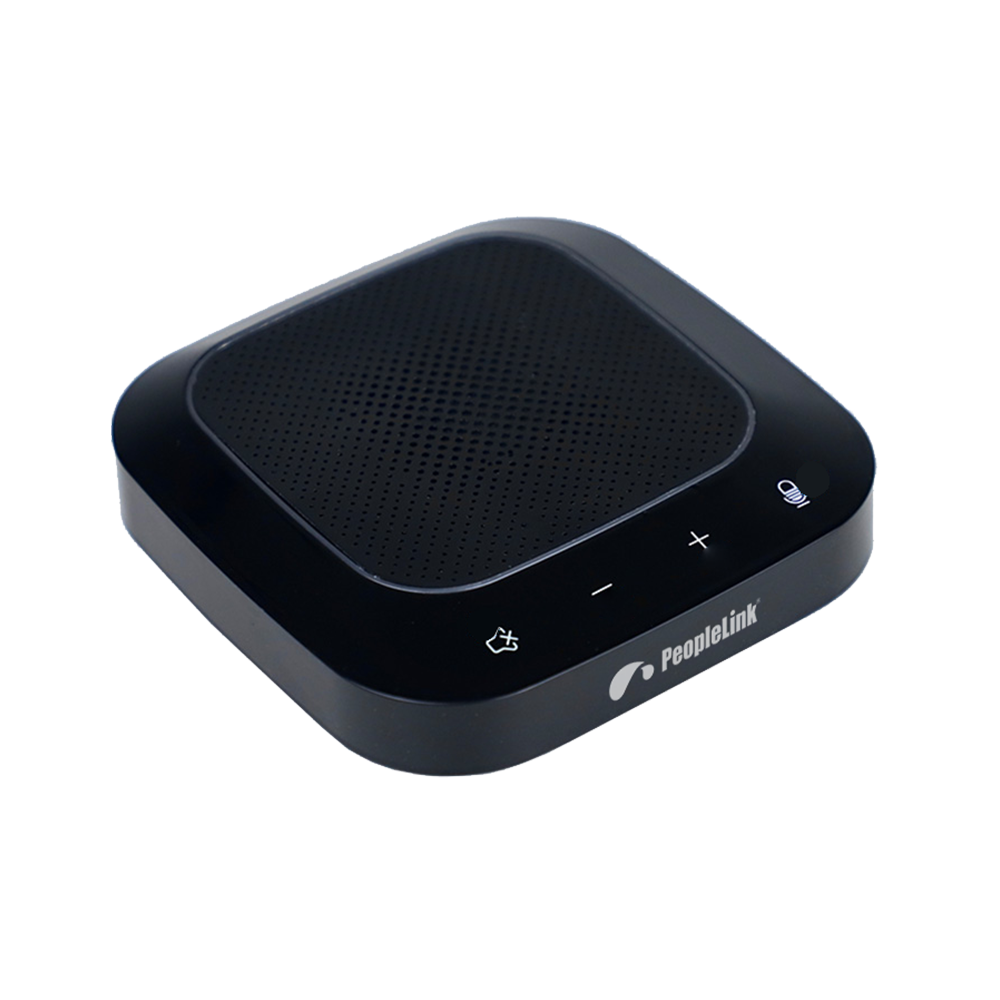

The PVC 50 Cascade 4C+ is an avant wireless audio conferencing system designed for effortless use. This advanced system comprises four omnidirectional boundary microphones and a controller module featuring a 1/4" microphone input, 1/4" output for speakers and PA systems, and a USB port for seamless computer connectivity. Operating within the 2.4 GHz range, this system offers unparalleled flexibility, portability, and rapid setup, making it ideal for business and educational settings. It is compatible with various video conferencing apps and ensures smooth and efficient communication experiences.
The Cascade 4C+ revolutionizes conference audio with its audio control terminal host, featuring a built-in lithium battery and four 2.4G wireless cascaded microphones. Enjoy 360° sound pickup, 384ms cancellation, intelligent dynamic noise reduction, automatic gain control, and full-duplex call technology. The built-in high-fidelity speaker ensures crystal-clear voice reproduction for smoother communication experiences.

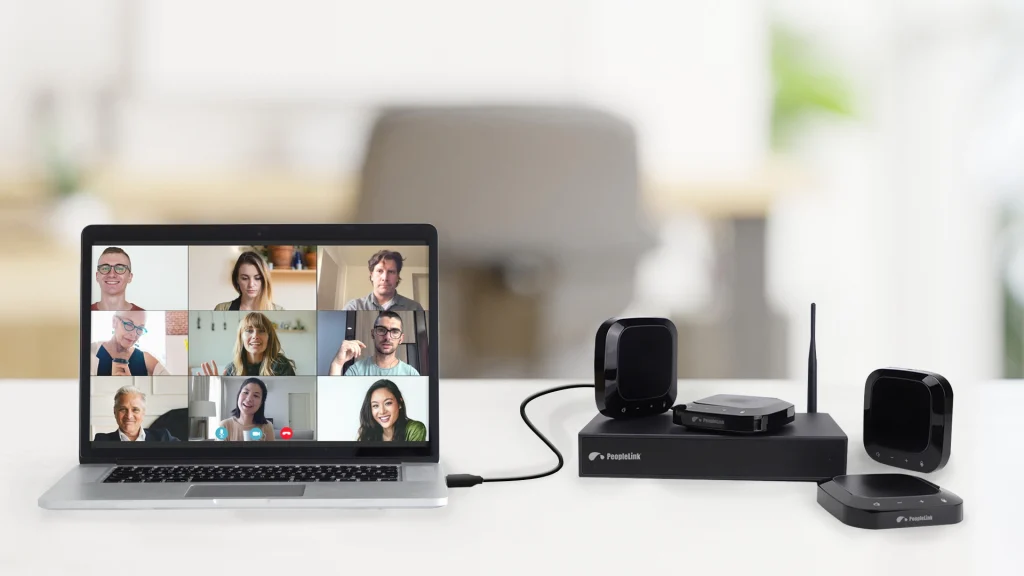

Connect the omnidirectional microphone wirelessly via 2.4G technology while effortlessly linking it to video conferencing hosts, conference tablets, computers, and laptops via USB data cable. Enjoy plug-and-play convenience without the need for driver installations.

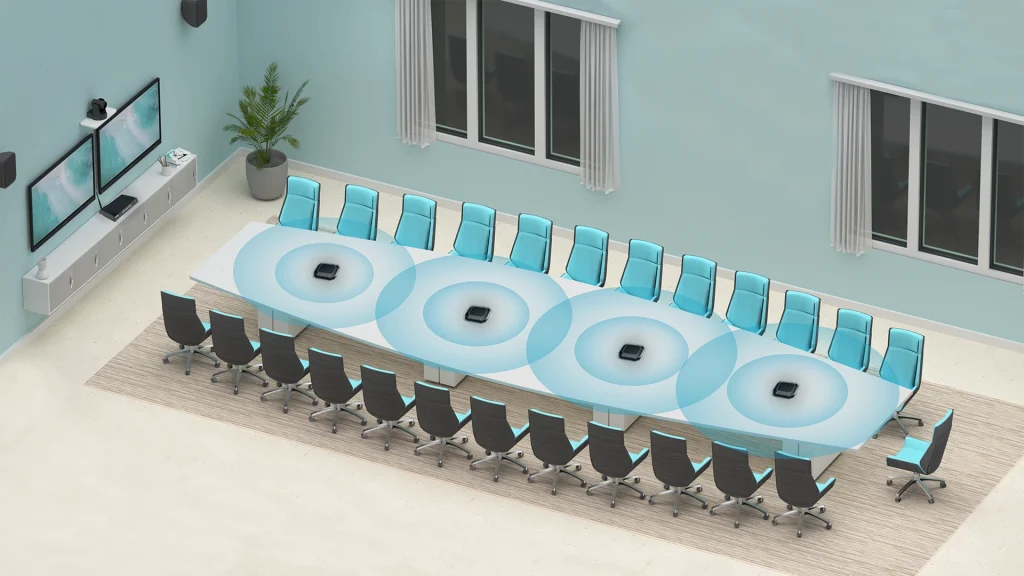

Experience the power of four daisy-chained wireless microphones with a master receiver. Each microphone boasts a 2-meter 360° sound pickup range, covering 80-100 square meters of meeting rooms.
Each omnidirectional microphone features a super-long battery, providing up to 10 hours of continuous operation. Enjoy the convenience of mute switches, volume controls, and a second mute switch for cutting the host receiver's output signal.

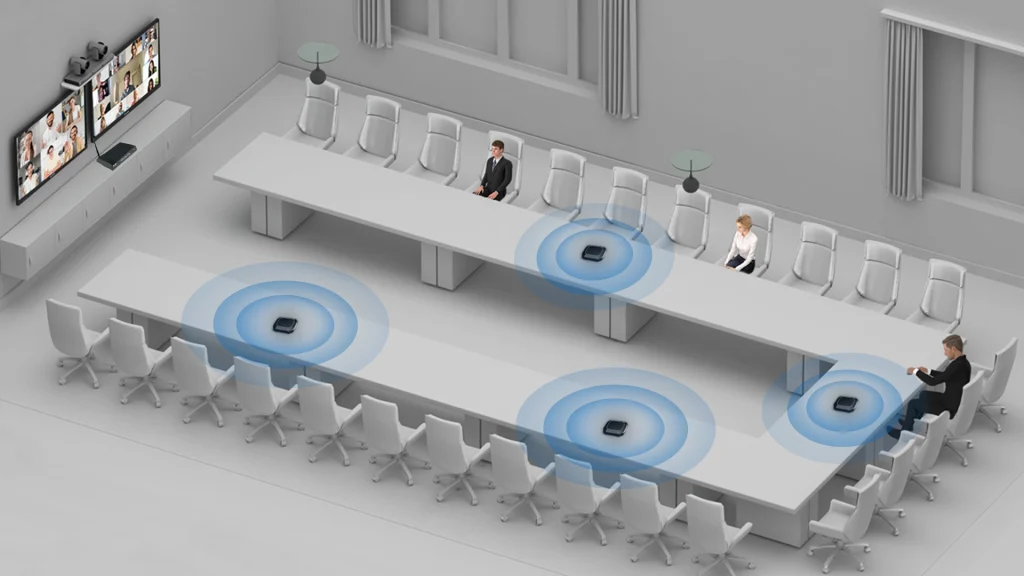

The Cascade is perfect for meeting rooms, training rooms, and any space requiring enhanced audio quality. It creates a seamless and immersive communication environment, improving virtual interactions across various settings.
Portable and mobile, the Cascade 4C+ offers instant communication capabilities. With a built-in lithium battery providing up to 8-10 hours of usage, it is suitable for large-scale conferences, high-end business environments, and leisure entertainment venues.

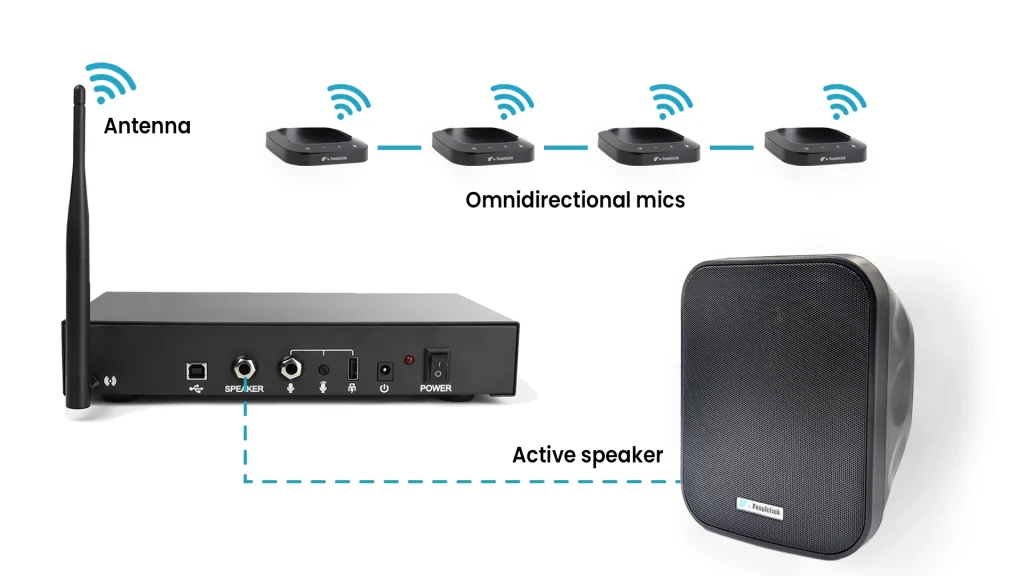

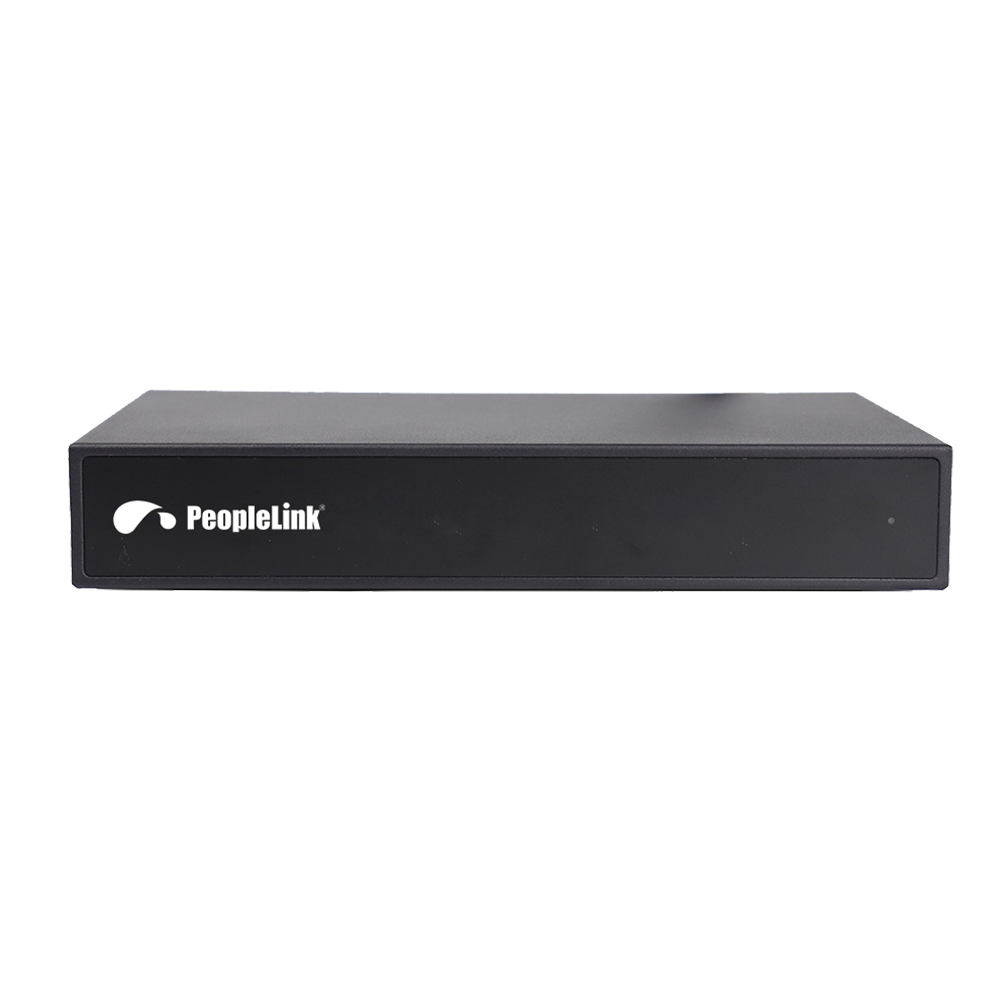

The master receiver seamlessly connects to active speakers and four cascaded microphones via 2.4G wireless technology. It supports wireless handheld microphones and local amplification, making it a versatile solution for large conferences and leisure venues.

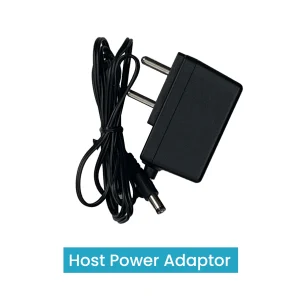

Host Power Adaptor

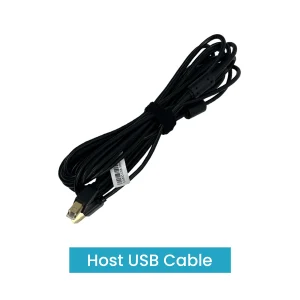

Host USB Cable X1

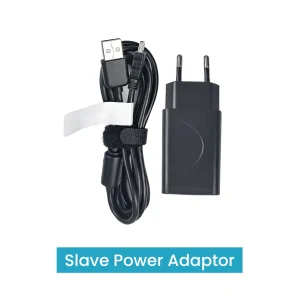

Slave Power Adaptor

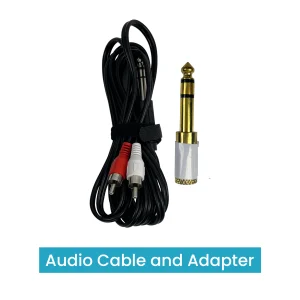

Audio Cable and Adaptor

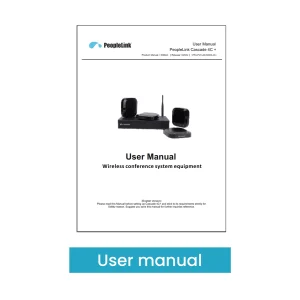

User Manual
| Connectivity | : USB & Wireless |
| Microphone | : 4 Omni directional microphone |
| Frequency | : 100Hz - 16kHz |
| Voice Pickup Range | : Each Mic 2 meters |
| Voice Pickup Radius | : 360° Voice pickup |
| Expansion Mic | : 4 Cascade |
| Ext Mic audio Pickup Range | : Each Mic 2 meters |
| Echo Length Cancellation | : 384ms |
| Interface | : USB Type-B, 6.5 mm |
| User Interface | : Function Keys |
| 3A Algorithm | : Built in AEC, AGC & ANS |
| Wireless | : Yes - 2.4G wireless Controller |
| Operating System | : Windows 7 / Windows 10 /MacOS |
| Ideal Room Size | : 80-120 square meters |
| Seating Capacity | : 10 to 30 seater |
| Application | : Conference room, board room |
| Parameter | PVC 50 4C+ Cascade | PVC 50 3C Cascade | Quad Speakerphone 12 |
|---|---|---|---|
| Image |  |  |  |
| Connectivity | USB & Wireless | USB & Wireless | USB & Bluetooth |
| Microphone | 4 Omni directional microphone | Omni directional microphone | 12 mic array |
| Frequency | 100Hz - 16kHz | 20Hz - 20kHz | 100Hz-22KHz |
| Voice Pickup Range | Each Mic 2 meters | Each Mic 2 meters | 6 meters |
| Voice Pickup Radius | 360° Voice pickup | 360° Voice pickup | 360° Voice pickup |
| Speaker | No | No | 95 dB Speaker Out |
| Expansion Mic | 4 Cascade | 3 Cascade | Supports 2 extension mics |
| Ext Mic audio Pickup Range | Each Mic 2 meters | Each Mic 2 meters | 3 meters |
| Echo Length Cancellation | 384ms | No | 500ms |
| Interface | USB Type-B, 6.5 mm | USB 2.0 (full), 3.5mm out | Type-B, RJ9, Line in/out, Din6 |
| User Interface | Function Keys | Keypad | LCD Display with Keypad |
| 3A Algorithm | Built in AEC, AGC & ANS | Built in AEC, AGC & ANS | Built in AEC, AGC & ANS |
| Bluetooth | No | No | Yes |
| Bluetooth range | No | No | 10 meters |
| Wireless | Yes - 2.4G wireless Controller | Yes - 2.4G wireless Controller | No |
| Built-in battery | No | No | Built-in 5200mAh battery |
| Operating System | Windows 7 / Windows 10 /MacOS | IOS/Android/Windows | IOS/Android/Windows |
| Ideal Room Size | 80-120 square meters | 80-100 square meters | 50ft by 20f |
| Seating Capacity | 10 to 30 seater | 10 to 24 seater | 15 - 20 seater |
| Application | Conference room, board room | Conference room, board room | Medium to Large conference room |
Disclaimer: Features and specifications are subject to change without prior notification, Images shown here are for representational purpose only, actual may vary.
